2016 General Electric 5KS509SAA524
2016 General Electric 5KS509SAA524
Location:Fridley, MN
or
Call 763-229-3963
Description

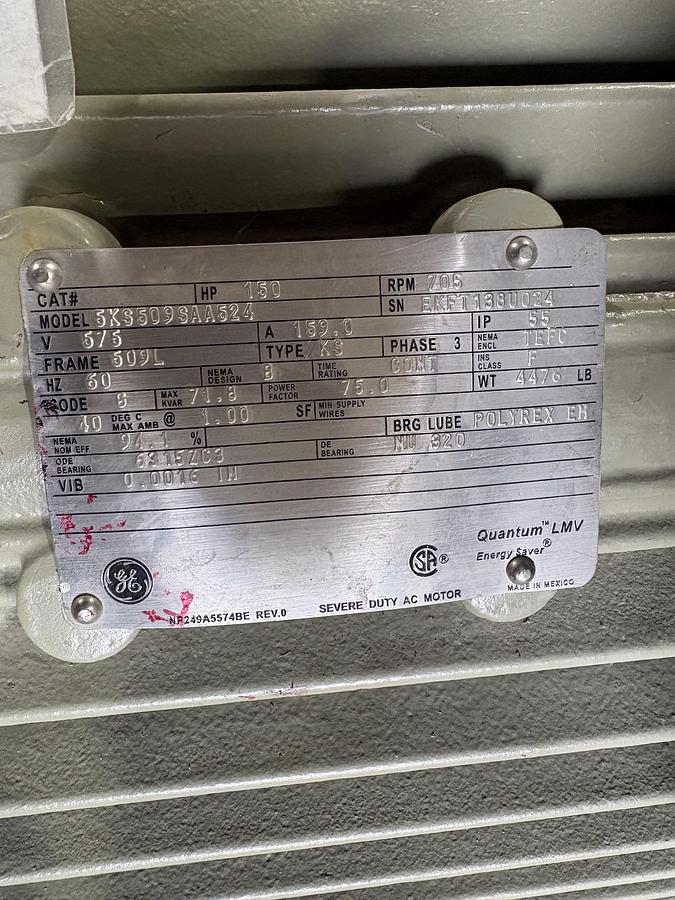

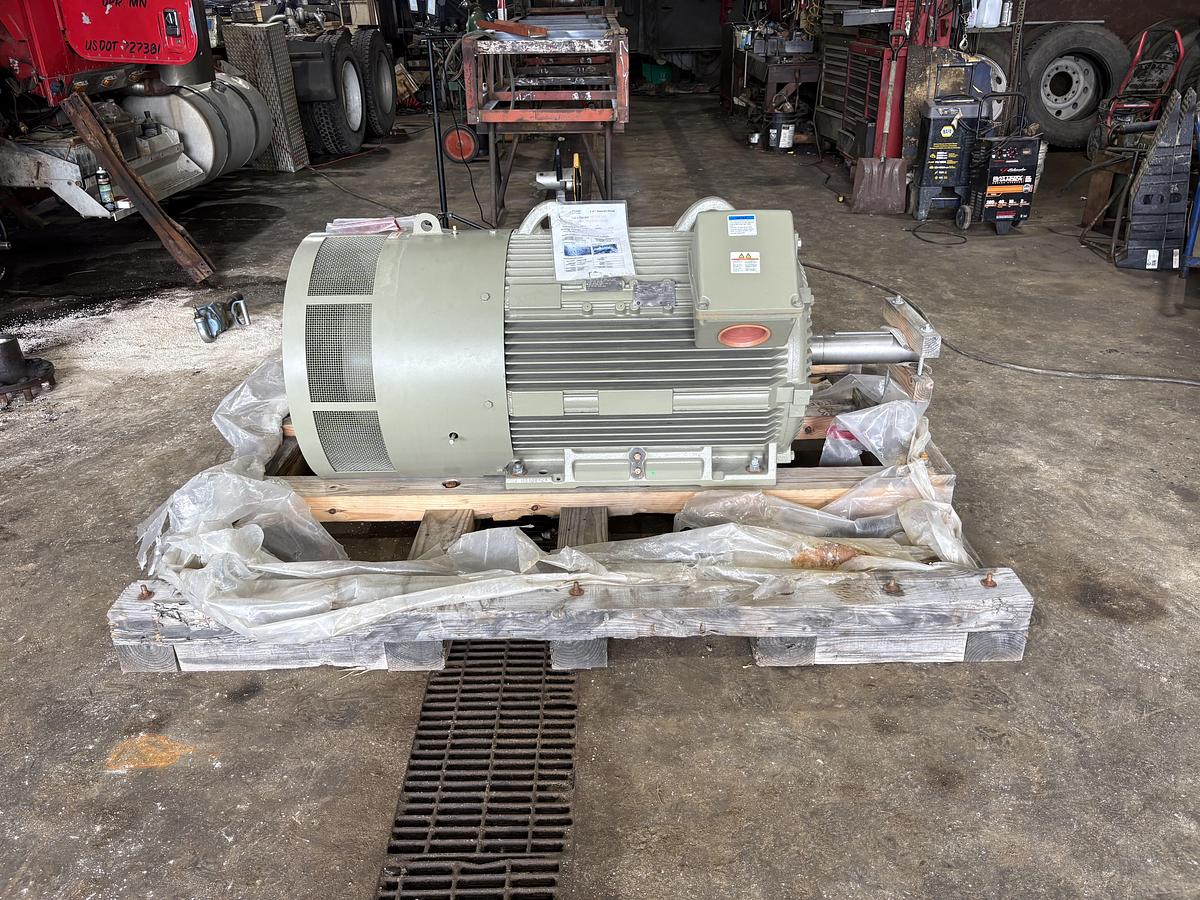

New - General Electric 150HP motor
705RPM
575 Volt
159 Amp
IP55 Enclosure
Frame 509L
Type KS
3 Phase
NEMA TEFC Enclosure
60 Hz
Ins. Class F
Power Factor 75.0
Shaft 3 7/8"
Key Way 1"
4476 Lbs
Specifications
| Manufacturer | General Electric |
| Model | 5KS509SAA524 |
| Year | 2016 |
| Condition | New |
| Serial Number | EKFT138U024 |
| Stock Number | 00051 |
| Part Number | 5KS509SAA524 |
| Brand | General Electric |
| RPM | 705, 705RPM, 705 RPM |
| Voltage | 575, 575V |
| Rated Amperage | 159 |
| Enclosure Type | IP55 |
| Frame | 509L |
| Type | KS |
| Phase | 3, 3PH |
| NEMA Enclosure | TEFC |
| Hertz | 60, 60Hz |
| Insulation | Class F, F |
| Power Factor | 75 |
| Shaft | 3 7/8" |
| Keyway | 1" |
