New 343kW Marathon Electric 433PSV6556 Synchronous AC Generator - S/N: MT-0117849-0122
New 343kW Marathon Electric 433PSV6556 Synchronous AC Generator - S/N: MT-0117849-0122
Location:Fridley, MN
or
Call 763-229-3963
Description
- New
- Marathon Electric
- 343kW Synchronous AC Generator
- Model: 433PSV6556-V002
- S/N: MT-0117849-0122
- Adaption: 1-14
- Enclosure: Open
- Frame: 433
- Type: PSV
- 60 Hz
- 1800 RPM
- Amb.: 40 C
- Ins. Class: H4
- Rise by Res.: 105 C
- Field Amps: 2.2
- Field Volts: 55
- Continuous Duty

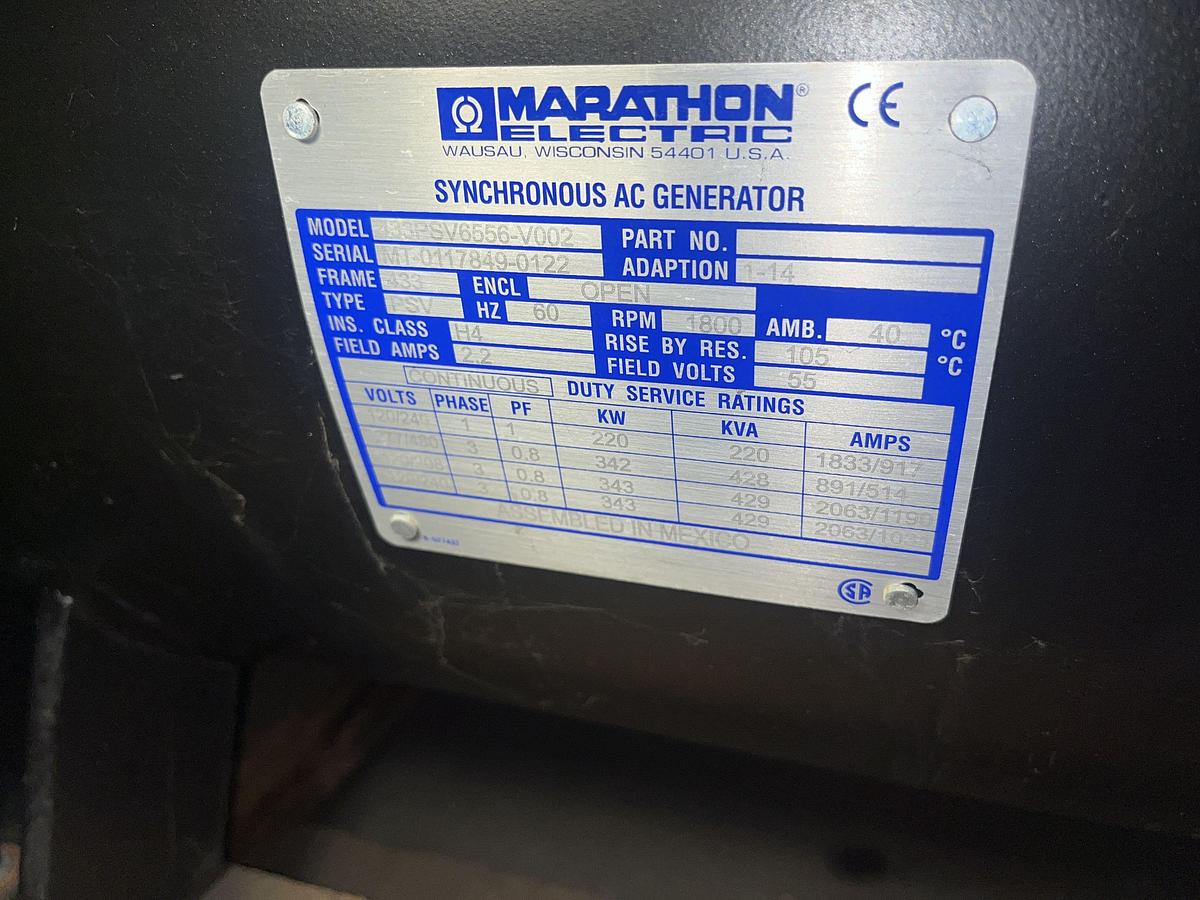

Continuous Duty Service Ratings
Volts Phase PF kW kVA Amps
120/240 1 1 220 220 1833/917
277/480 3 0.8 342 428 891/514
120/208 3 0.8 343 429 2063/1190
120/240 3 0.8 343 429 2063/1031
Specifications
| Manufacturer | Marathon Electric |
| Model | 433PSV6556-V002 |
| Condition | New |
| Serial Number | MT-0117849-0122 |
| Stock Number | 00322 |
| Location | 3-2 |
| Manufacturer | Marathon Electric |
| Hertz | 60 Hz |
| RPM | 1800 RPM |
| Duty | Continuous Duty |
| * Model | 433PSV6556-V002 |
| * S/N | MT-0117849-0122 |
| * Adaption | 1-14 |
| * Enclosure | Open |
| * Amb. | 40 C |
| * Ins. Class | H4 |
| * Rise by Res. | 105 C |
| * Field Amps | 2.2 |
| * Field Volts | 55 |
| * Frame | 433 |
| * Type | PSV |
