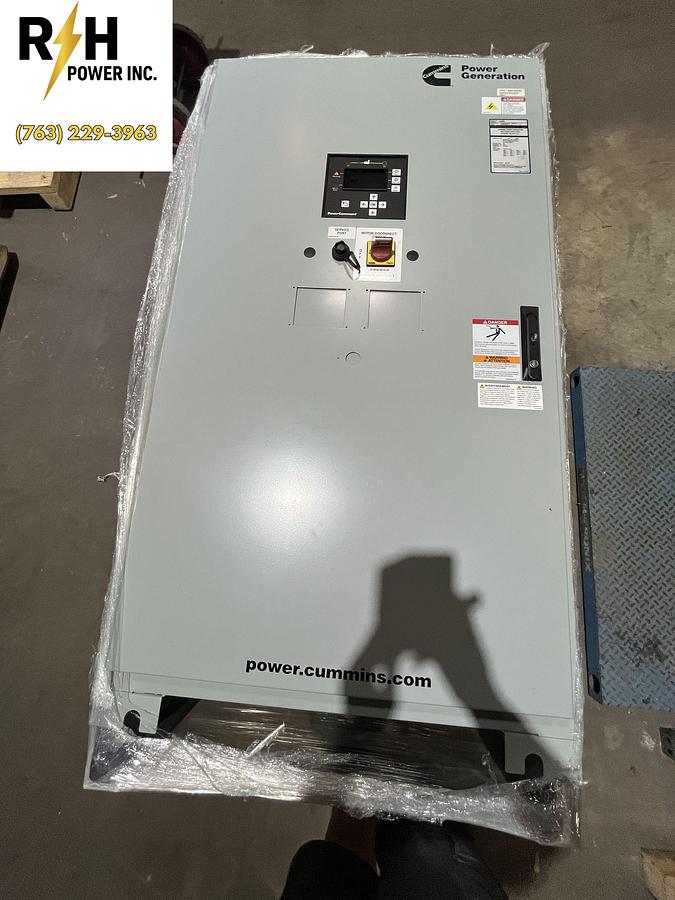

New 125 Amp 208VAC Cummins CXSB8 Spec. A Automatic Transfer Switch - S/N: E23M239072
New 125 Amp 208VAC Cummins CXSB8 Spec. A Automatic Transfer Switch - S/N: E23M239072
Location:Fridley, MN
or
Call 763-229-3963
Description
- New
- Cummins
- CXSB8 Spec. A
- S/N: E23M239072
- 2023
- 125 Amp
- 208 VAC
- 60 Hz
- 3 Pole
- Transition: In Phase
- Application: Utility to Genset
- Type 1 Enclosure

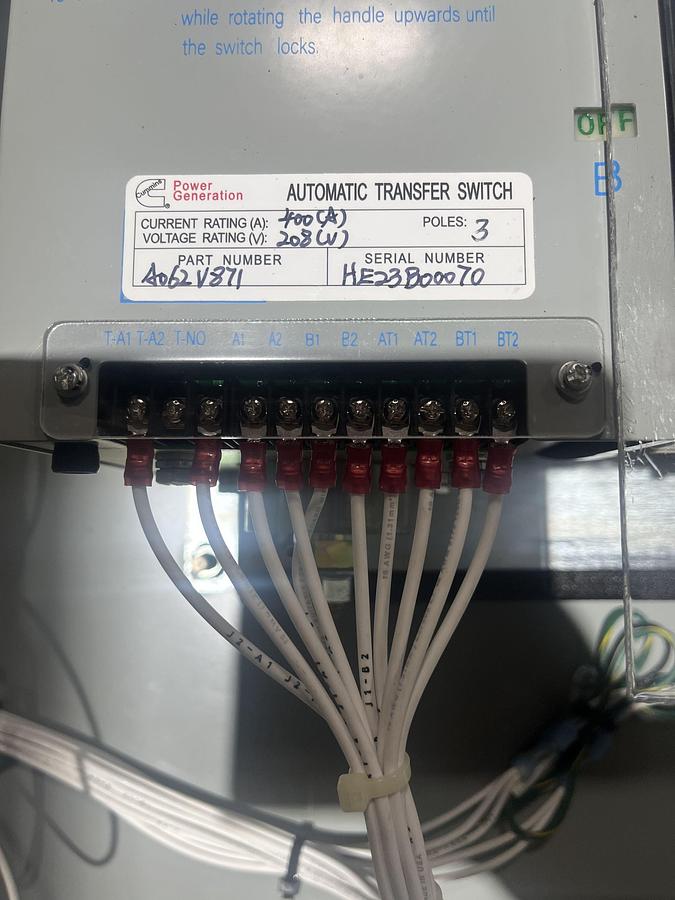

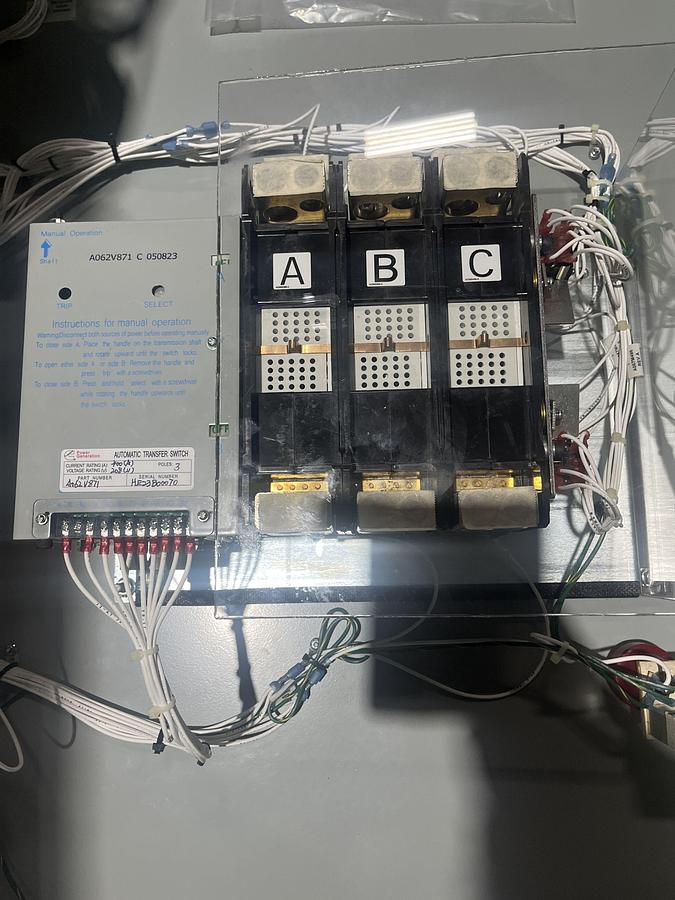

- Switch P/N: A062V871

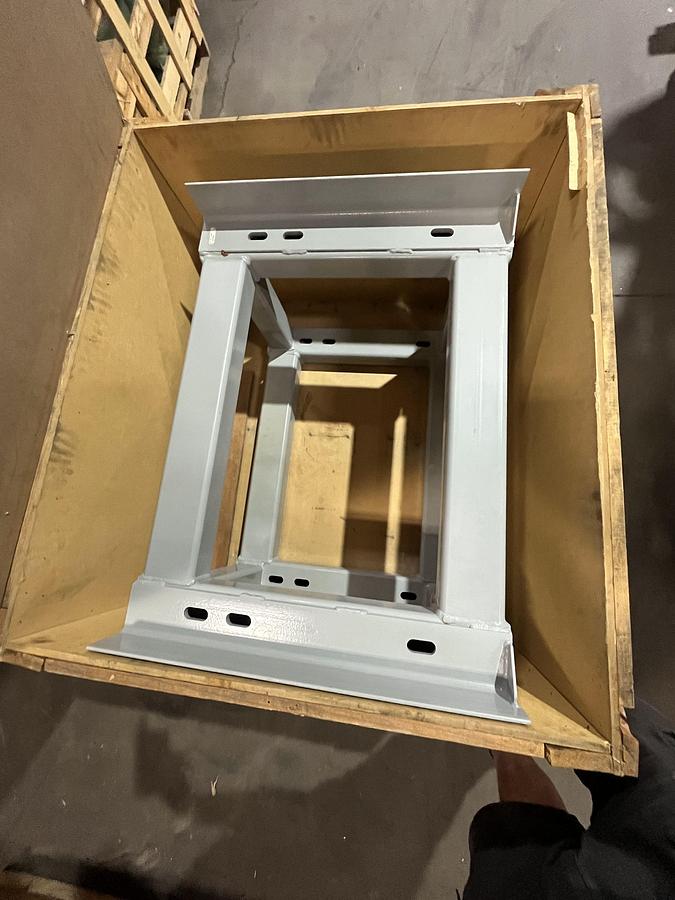

- Includes Mounting Frame in separate shipping crate
Feature Codes:
- A044-7: Frequency - 60 Hertz
- H024-7: UL 1008 3 Cycle Withstand Rating
- B051-7: Premium Feature Cabinet
- B001-7: Cabinet - Type 1
- A050-7: Packing - Wood Crate [N/A]
- A035-7: Application - Utility to Genset
- CXS125: Model Information
- A028-7: Poles - 3
- SPEC-A: Product Revision A
- G007-7: Transfer Switch Warranty - Cummins 5 Year Comprehensive [Started 2023]
- A077-7: Transfer Mode - In Phase Transition
- B053-7: Wall Mount Enclosure
- L201-7: Aux Relay - 12 VDC Coil
- N079-7: Cable Lugs - Mechanical, 1-600 MCM / Pole

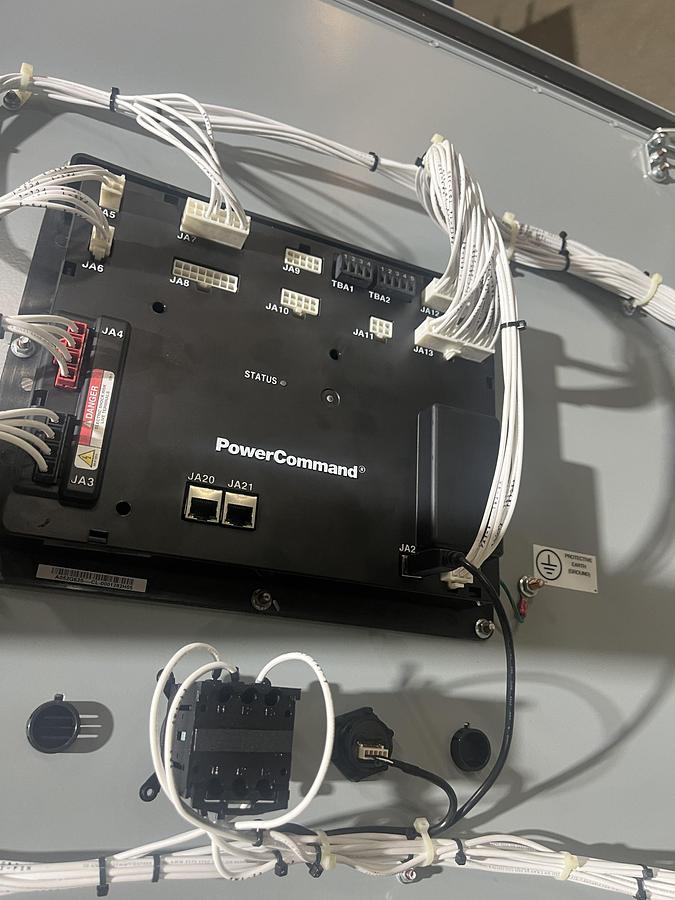

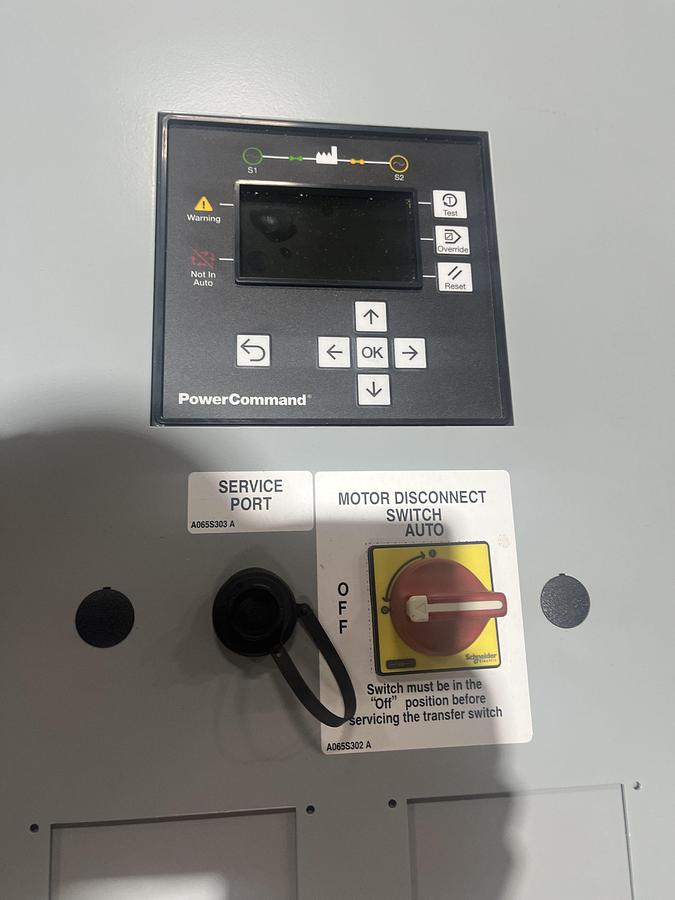

- C109-7: PC80 Control
- A091-7: System - 3 Phase, 4-W
- M077-7: Premium Customer I/O
- R021-7: Voltage - 208

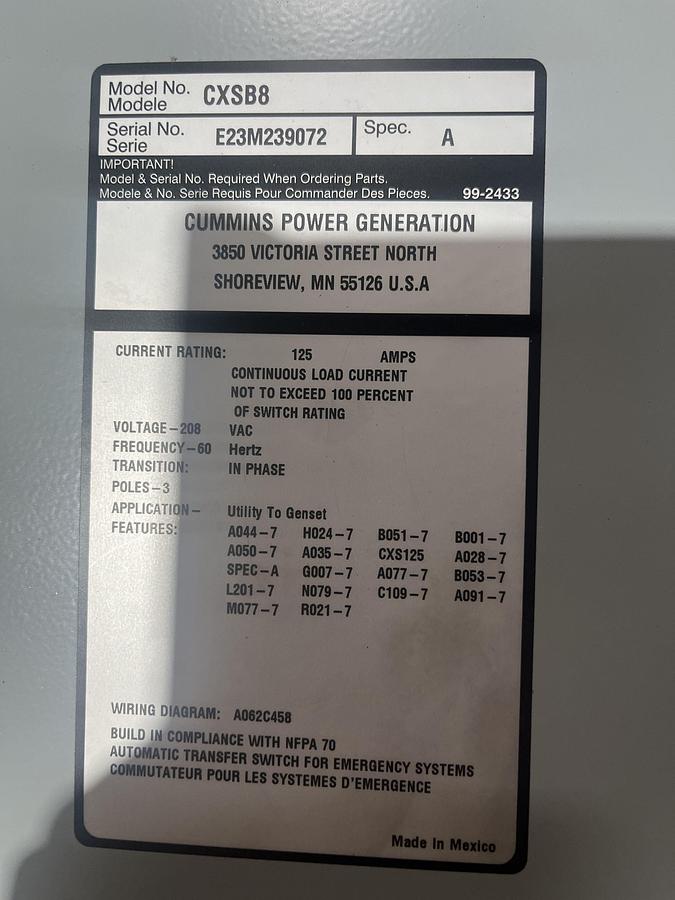

Specifications
| Manufacturer | Cummins |
| Model | CXSB8 Spec. A |
| Year | 2023 |
| Condition | New |

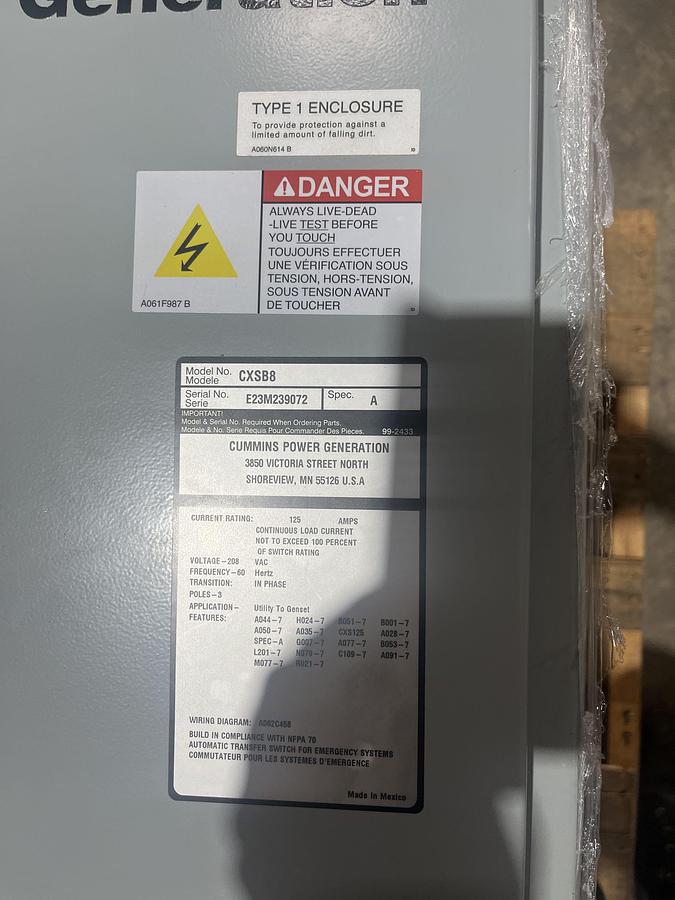

| Serial Number | E23M239072 |
| Stock Number | 00331 |
| Feature Code A044-7: Frequency | 60 Hertz |
| Feature Code H024-7: | UL 1008 3 Cycle Withstand Rating |
| Feature Code B051-7: | Premium Feature Cabinet |
| Feature Code B001-7: Cabinet | Type 1 |
| Feature Code A035-7: Application | Utility to Genset |
| Feature Code A028-7: Poles | 3 |
| Feature Code A077-7: Transfer Mode | In Phase Transition |
| Feature Code B053-7: | Wall Mount Enclosure |
| Feature Code L201-7: Aux Relay | 12 VDC Coil |
| Feature Code N079-7: Cable Lugs | Mechanical, 1-600 MCM / Pole |
| Feature Code C109-7: | PC80 Control |
| Feature Code A091-7: System | 3 Phase, 4-W |
| Feature Code M077-7: | Premium Customer I/O |
| Feature Code R021-7: Voltage | 208 |
| * Switch P/N | A062V871 |
| * S/N | E23M239072 |
