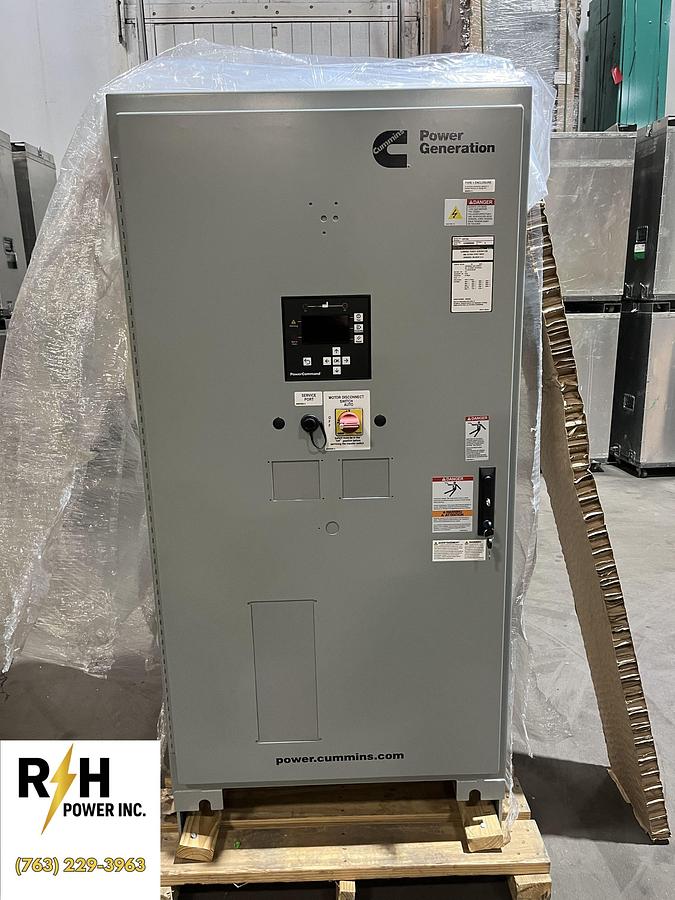

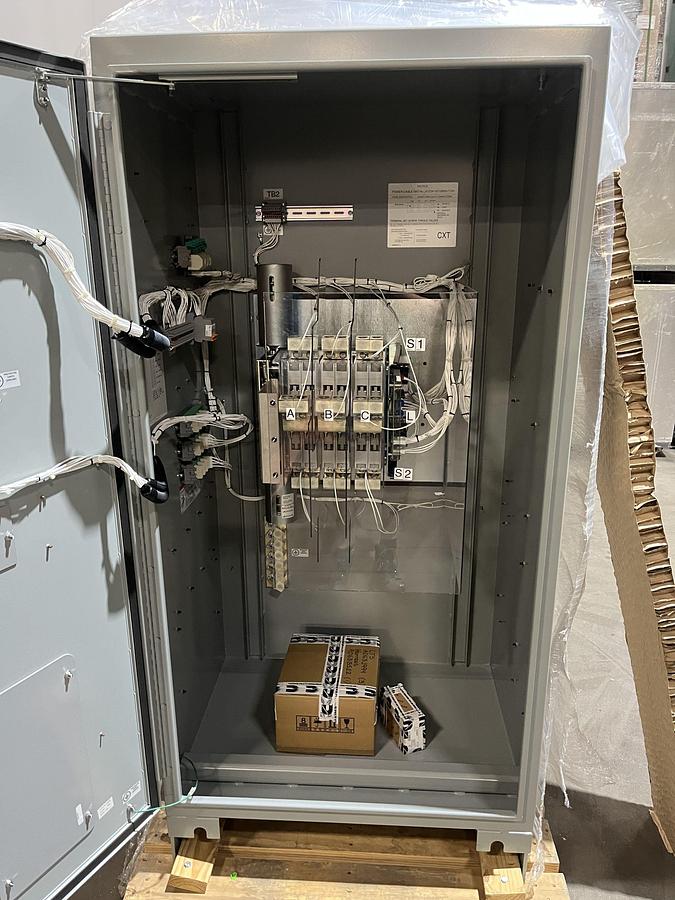

New 150 Amp 240VAC Cummins CXTC8 Spec. A Automatic Transfer Switch - S/N: D22M093306

New 150 Amp 240VAC Cummins CXTC8 Spec. A Automatic Transfer Switch - S/N: D22M093306

Location:Fridley, MN

or
Call 763-229-3963

Description

  • New
  • Cummins
  • CXTC8 Spec. A
  • 2022
  • S/N: D22M093306
  • 150 Amp
  • 240 VAC
  • 60 Hz
  • 3 Pole
  • Transition: In Phase
  • Application: Utility to Genset
  • Type 1 Enclosure


Feature Codes:


  • A044-7: Frequency - 60 Hertz
  • G004-7: Transfer Switch Warranty - Cummins 2 Year Comprehensive [Expired]
  • N080-7: Cable Lugs - Mechanical, 2-600 MCM / Pole
  • D403-7: Integrated High Accuracy Power Quality Metering
  • B001-7: Cabinet - Type 1
  • H024-7: UL 1008 3 Cycle Withstand Rating
  • R023-7: Voltage - 240
  • A050-7: Packing - Wooden Crate [N/A]
  • A046-7: Listing - UL 1008 / CSA Certification
  • A028-7: Poles - 3
  • A035-7: Application - Utility to Genset
  • SPEC-A: Product Revision A
  • CXT150: Model Information
  • A077-7: Transfer Mode - In Phase Transition
  • A089-7: System - 1 Phase, 3-W
  • M076-7: Standard Customer I/O
  • B053-7: Wall Mount Enclosure
  • L101-7: Aux Relay - 24 VDC Coil

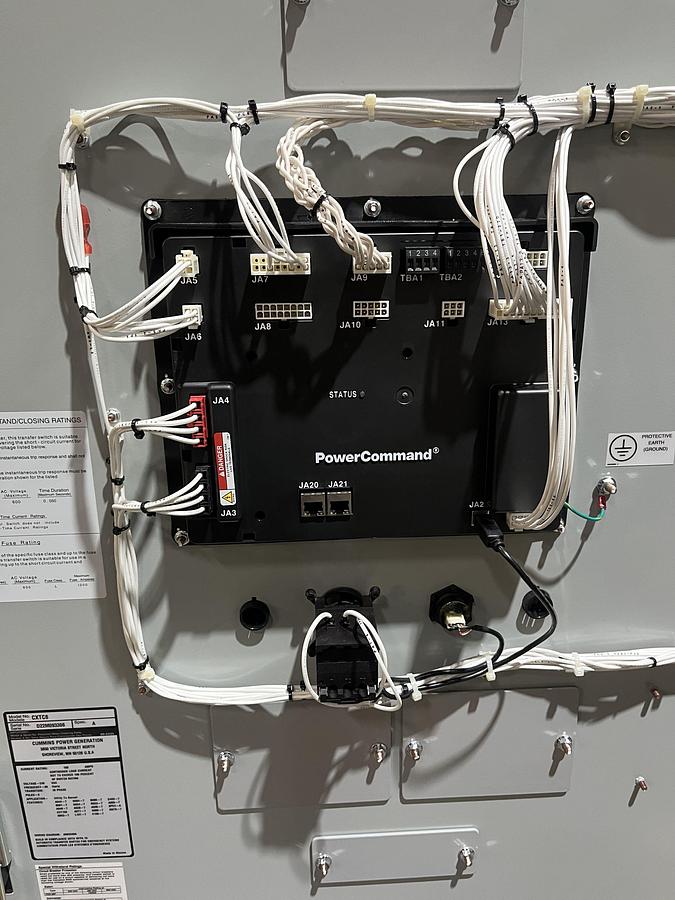

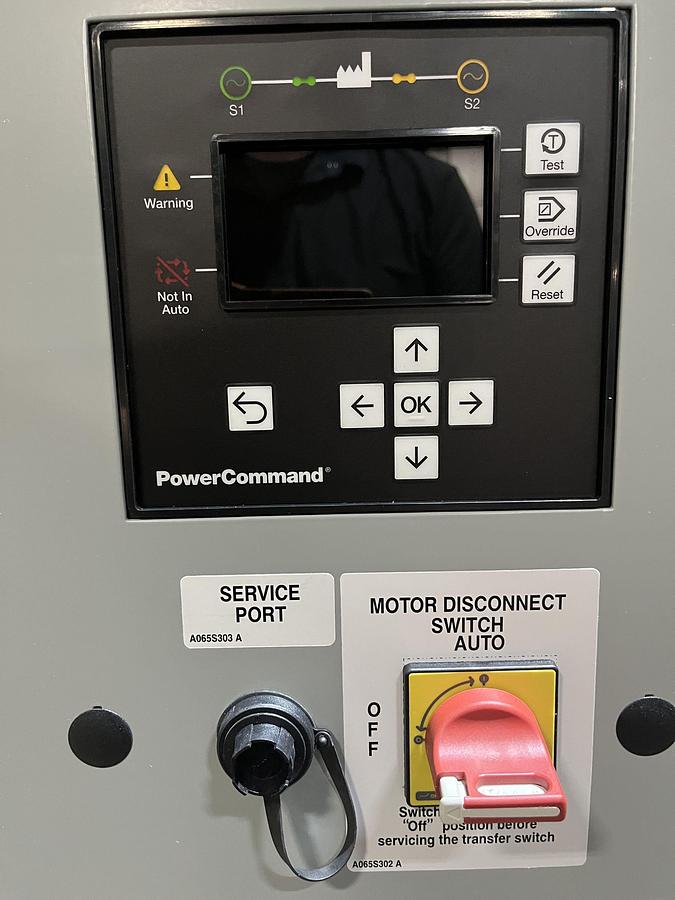

  • C109-7: PC80 Control
Show All

Specifications

ManufacturerCummins
ModelCXTC8 Spec. A
Year2022
ConditionNew
Serial NumberD22M093306
Stock Number00329
C109-7PC80 Control
L101-7: Aux Relay24 VDC Coil
B053-7Wall Mount Enclosure
M076-7Standard Customer I/O
A089-7: System1 Phase, 3-W
A077-7: Transfer ModeIn Phase Transition
A035-7: ApplicationUtility to Genset
A028-7: Poles3
A046-7: ListingUL 1008 / CSA Certification
R023-7: Voltage240
H024-7UL 1008 3 Cycle Withstand Rating
B001-7: CabinetType 1
D403-7Integrated High Accuracy Power Quality Metering
N080-7: Cable LugsMechanical, 2-600 MCM / Pole
A044-7: Frequency60 Hertz
Model:CXTC8 Spec. A
* S/ND22M093306
