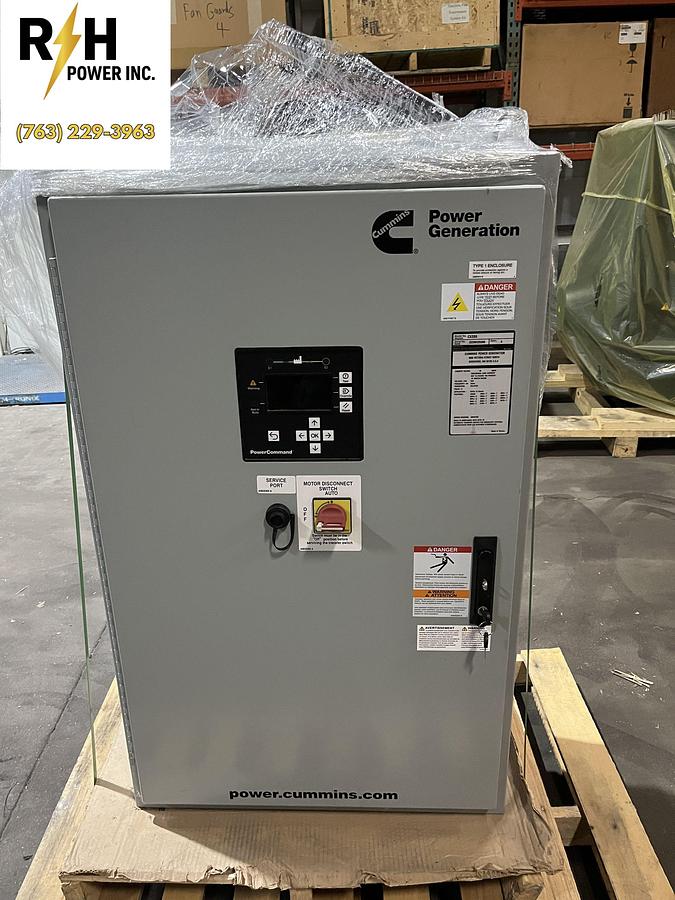

40 Amp 240VAC Cummins CXSB8 Spec. A Automatic Transfer Switch - S/N: D23M225886
40 Amp 240VAC Cummins CXSB8 Spec. A Automatic Transfer Switch - S/N: D23M225886
Location:Fridley, MN
or
Call 763-229-3963
Description
- New
- Cummins
- CXSB8 Spec. A
- S/N: D23M225886
- 40 Amp
- 240 VAC
- 60 Hz
- 3 Poles
- Transition: Delayed
- Utility to Genset

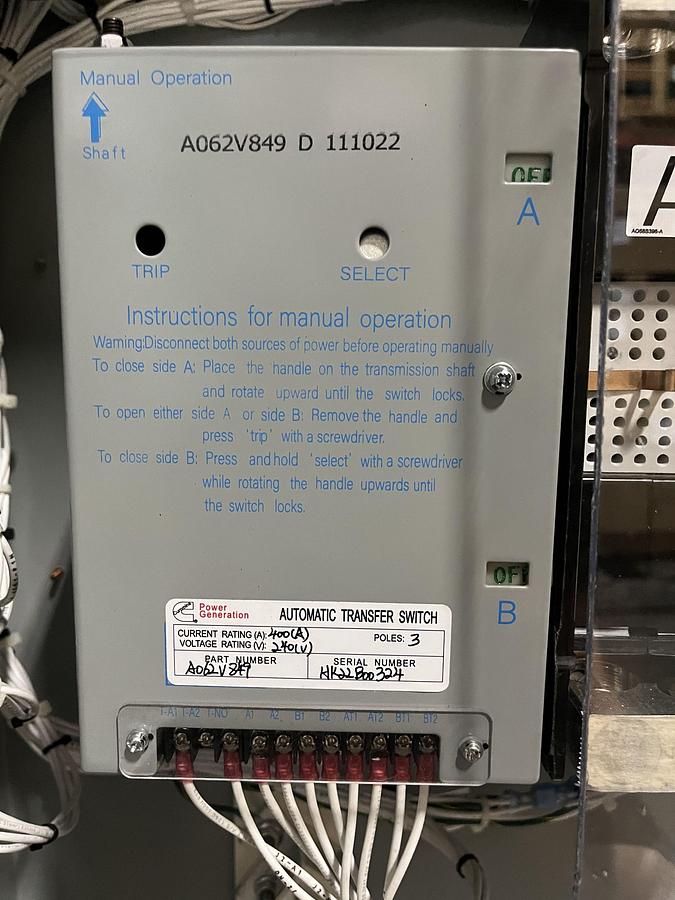

- Switch P/N: A062V849

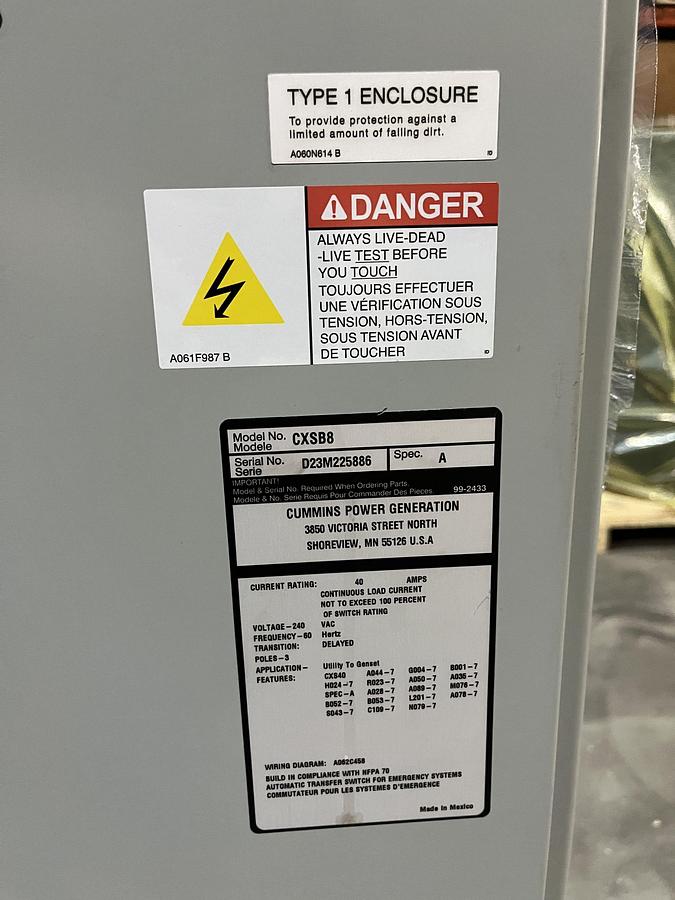

- Type 1 Enclosure
Feature Codes:
- A044-7: Frequency - 60 Hertz
- G004-7: Transfer Switch Warranty - Cummins 2 YR Comprehensive [Expired]
- B001-7: Cabinet - Type 1
- H024-7: UL 1008 3 Cycle Withstand Rating
- R023-7: Voltage - 240
- A050-7: Packing - Wooden Crate [N/A]
- A035-7: Application - Utility to Genset
- SPEC-A: Product Revision A
- A028-7: Poles - 3
- A089-7: System - 1 Phase, 3-W
- M076-7: Standard Customer I/O
- B052-7: Standard Feature Cabinet
- B053-7: Wall Mount Enclosure
- L201-7: Aux Relay - 12 VDC Coil
- A078-7: Transfer Mode - Delayed Transition
- S043-7: Listing - UL

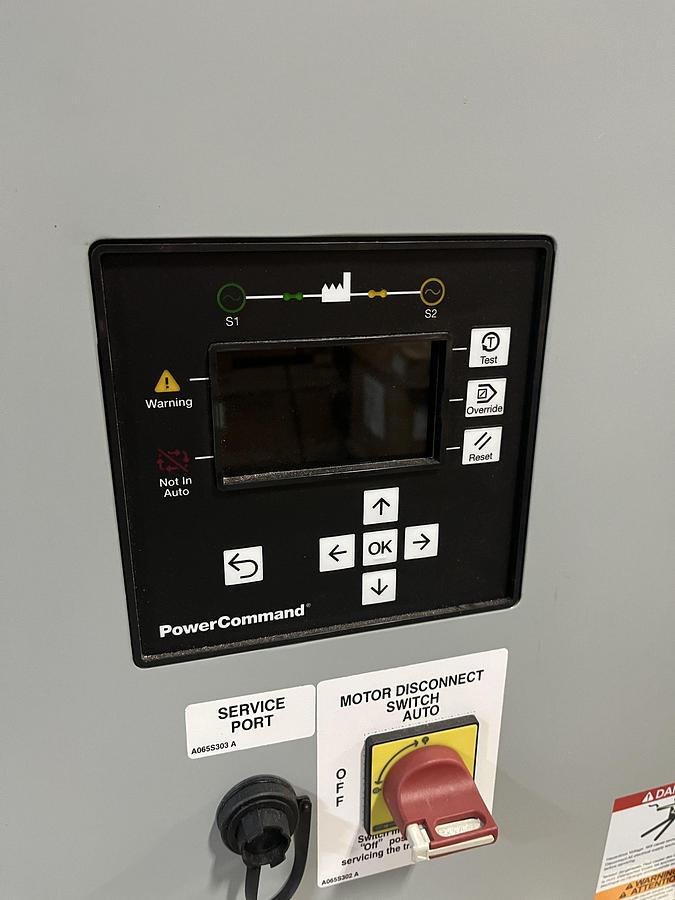

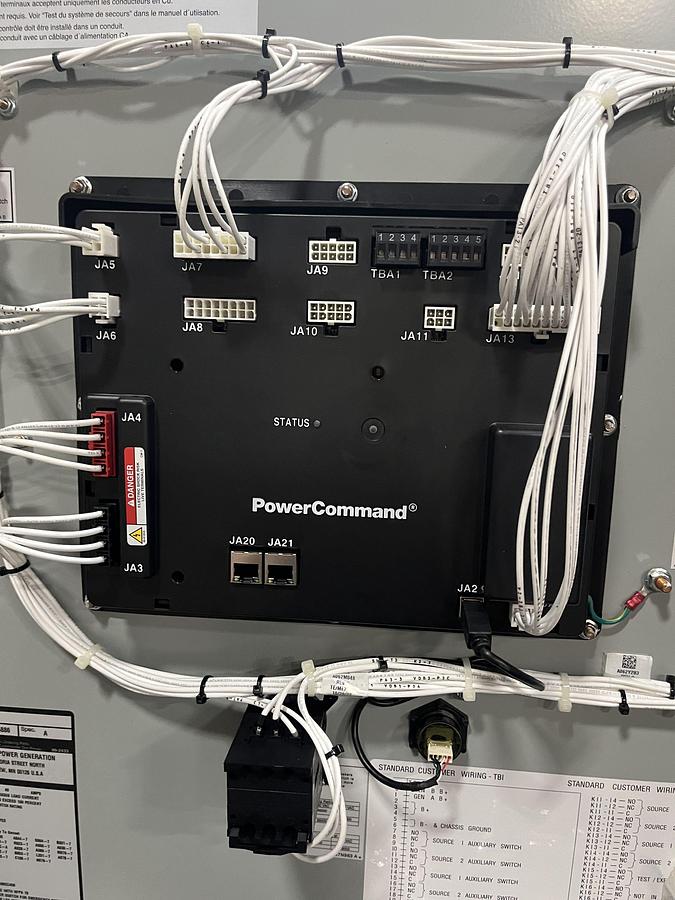

- C109-7: PC80 Control
- N079-7: Cable Lugs - Mechanical, 1-600 MCM/Pole
Specifications
| Manufacturer | Cummins |
| Model | CXSB8 Spec. A |
| Year | 2023 |
| Condition | New |

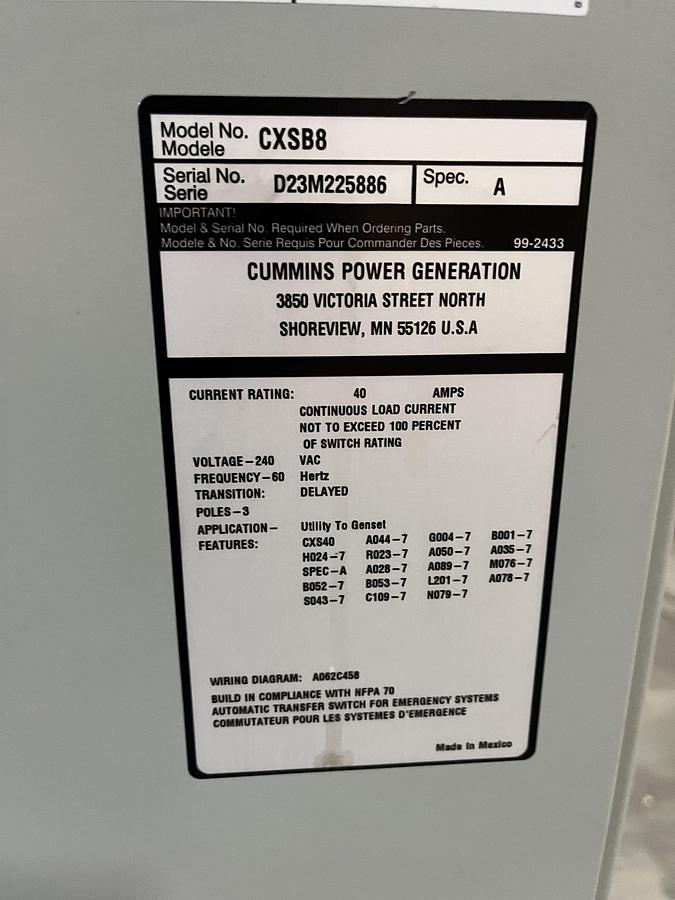

| Serial Number | D23M225886 |
| Stock Number | 00320 |
| * S/N | D23M225886 |
| * Transition | Delayed |
| * Switch P/N | A062V849 |
| * A044-7 | Frequency - 60 Hertz |
| * B001-7 | Cabinet - Type 1 |
| * R023-7 | Voltage - 240 |
| * A028-7 | Poles - 3 |
| * B052-7 | Standard Feature Cabinet |
| * C109-7 | PC80 Control |
| * M076-7 | Standard Customer I/O |
| * B053-7 | Wall Mount Enclosure |
