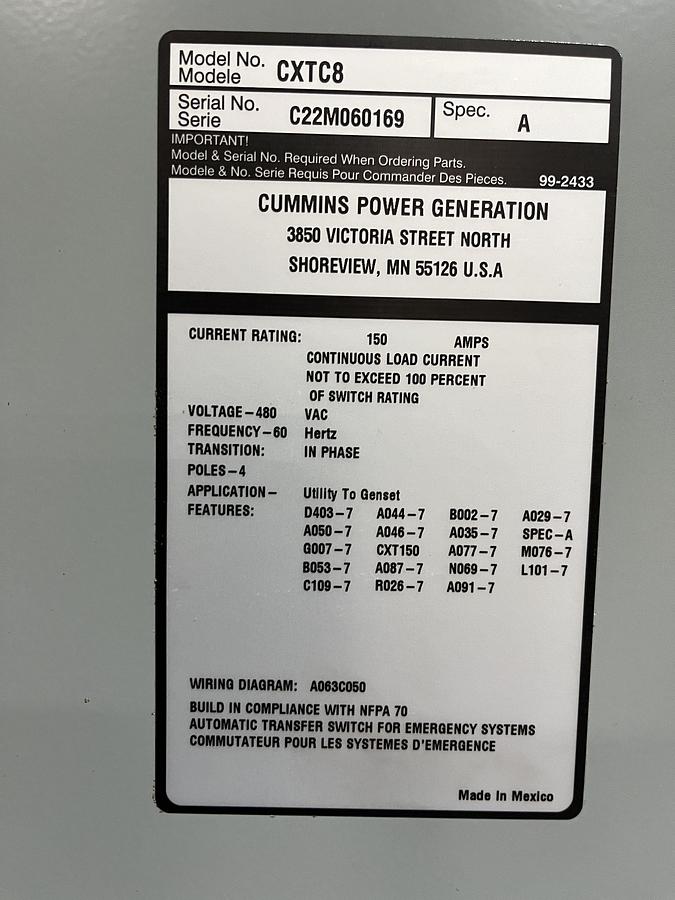

New 150A 480VAC Cummins CXTC8 Spec. A Automatic Transfer Switch - S/N: C22M060169
New 150A 480VAC Cummins CXTC8 Spec. A Automatic Transfer Switch - S/N: C22M060169
Location:Fridley, MN
or
Call 763-229-3963
Description
- New
- Cummins
- CXTC8 Spec. A Automatic Transfer Switch
- 2022
- S/N: C22M060169
- 150 Amp
- 480 VAC
- 60 Hz
- Transition: In Phase

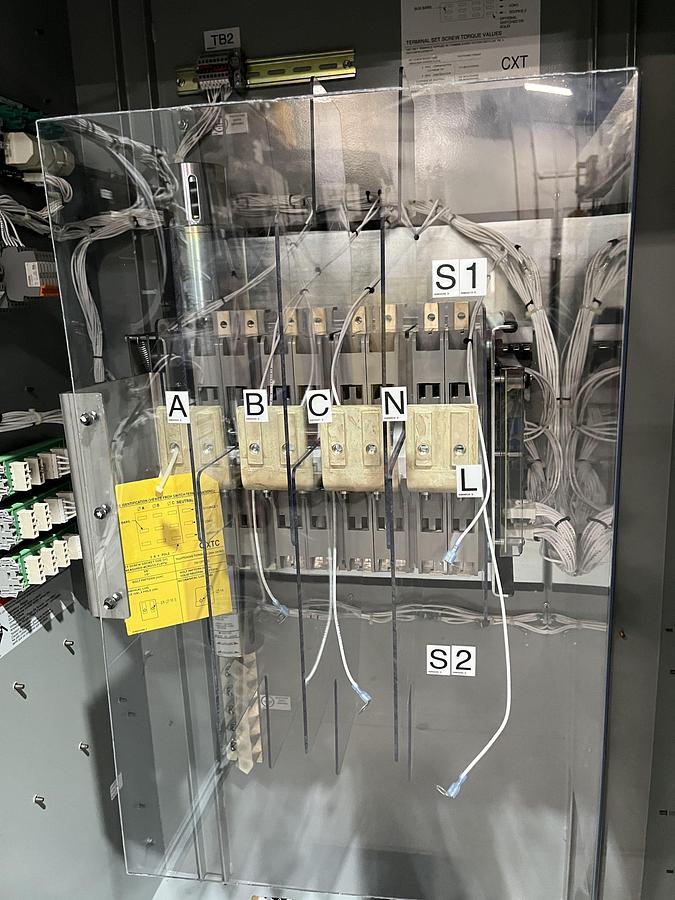

- 4 Poles
- Application: Utility to Genset

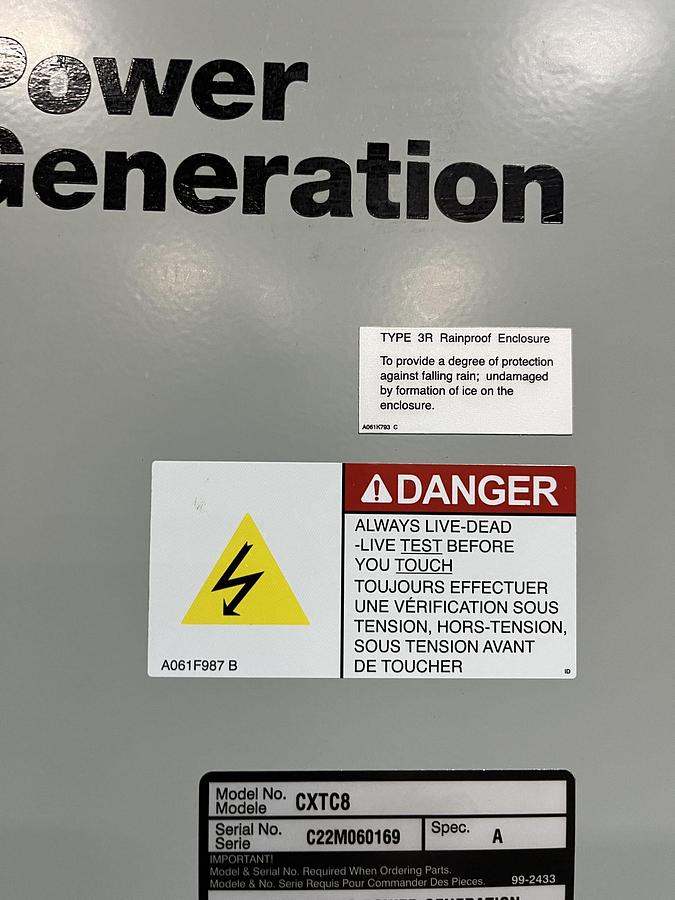

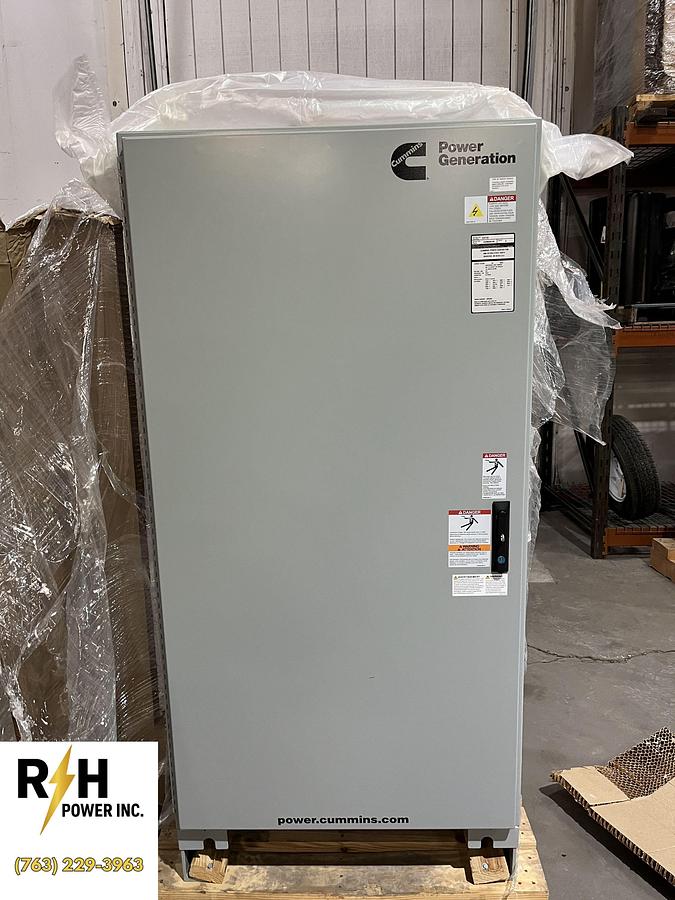

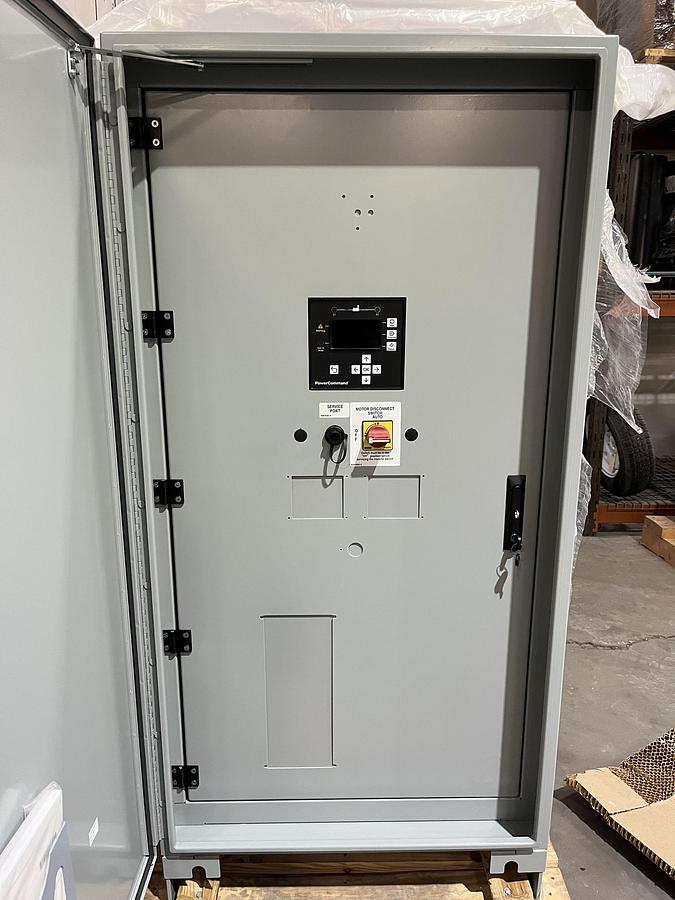

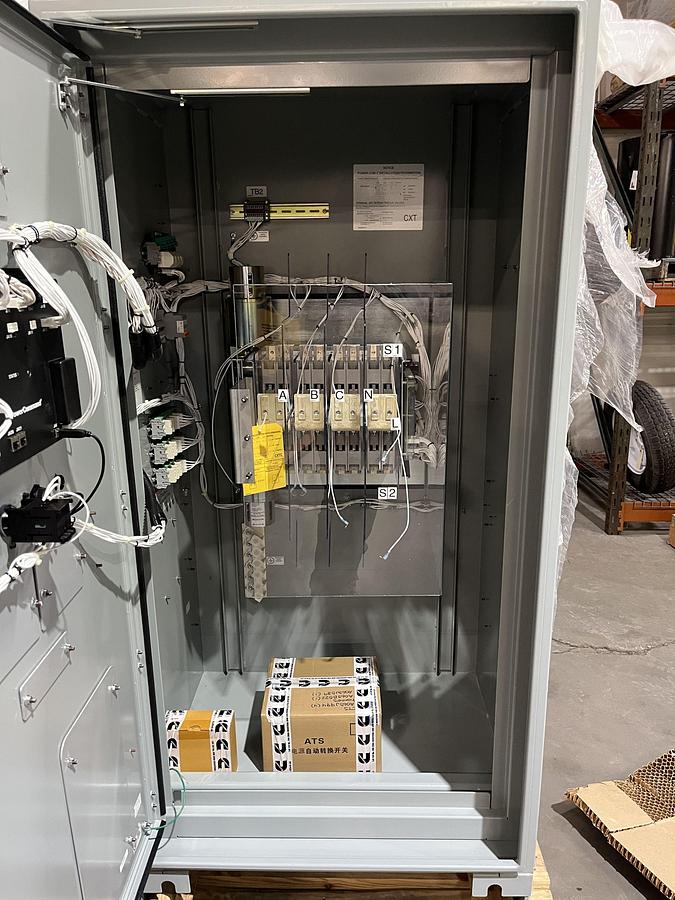

- Enclosure: Type 3R Rainproof Enclosure

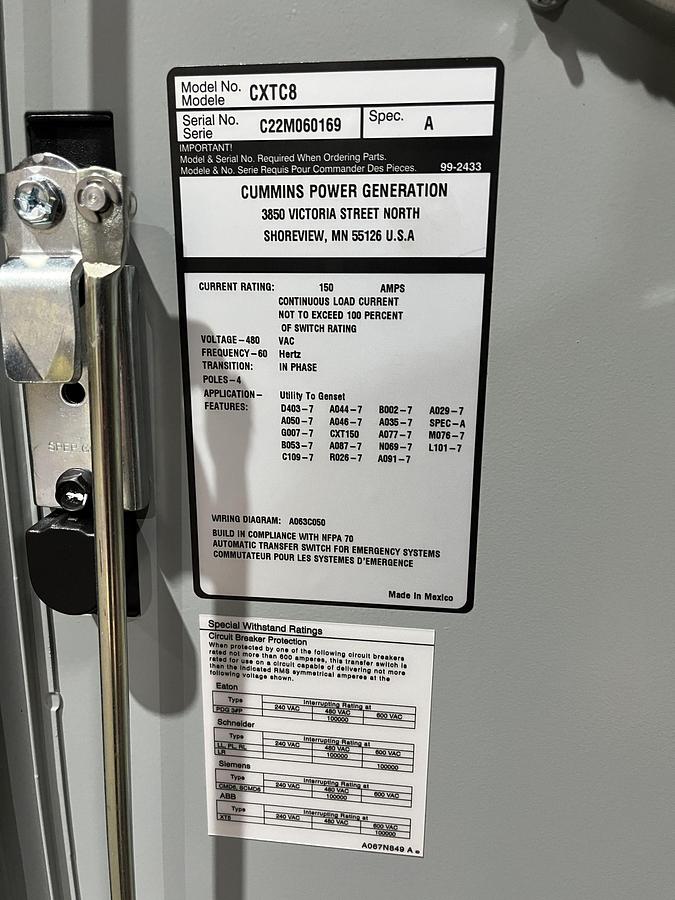

Feature Codes:

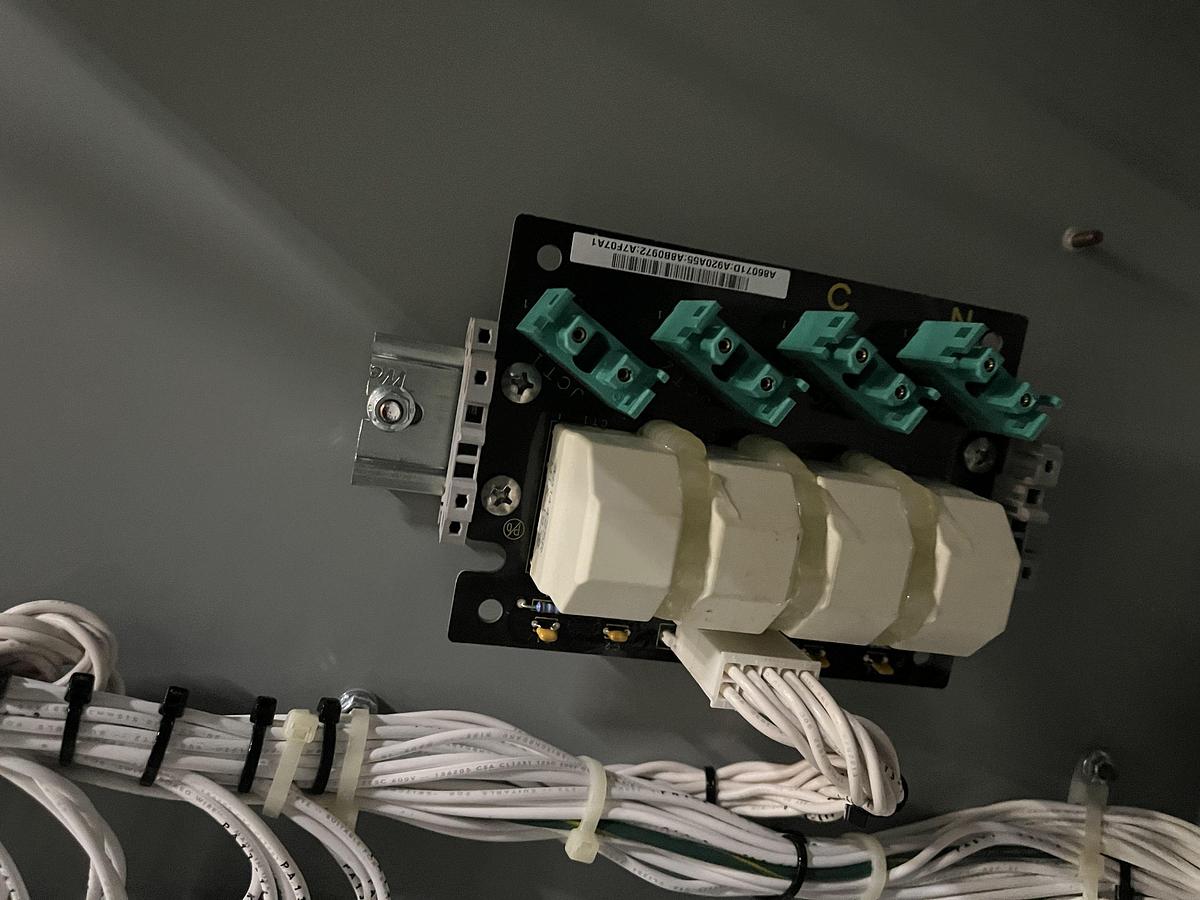

- D403-7: Integrated High Accuracy Power Quality Metering
- A044-7: Frequency - 60 Hertz
- B002-7: Cabinet - Type 3R
- A029-7: Poles - 4
- A050-7: Packing - Wooden Crate [N/A]
- A046-7: Listing - UL 1008/CSA Certification
- A035-7: Application - Utility to Genset
- SPEC-A: Product Revision A
- G007-7: Transfer Switch Warranty - Cummins 5 Year Comprehensive [Expires 2027]
- CXT150: Model Information
- A077-7: Transfer Mode - In-phase Transition

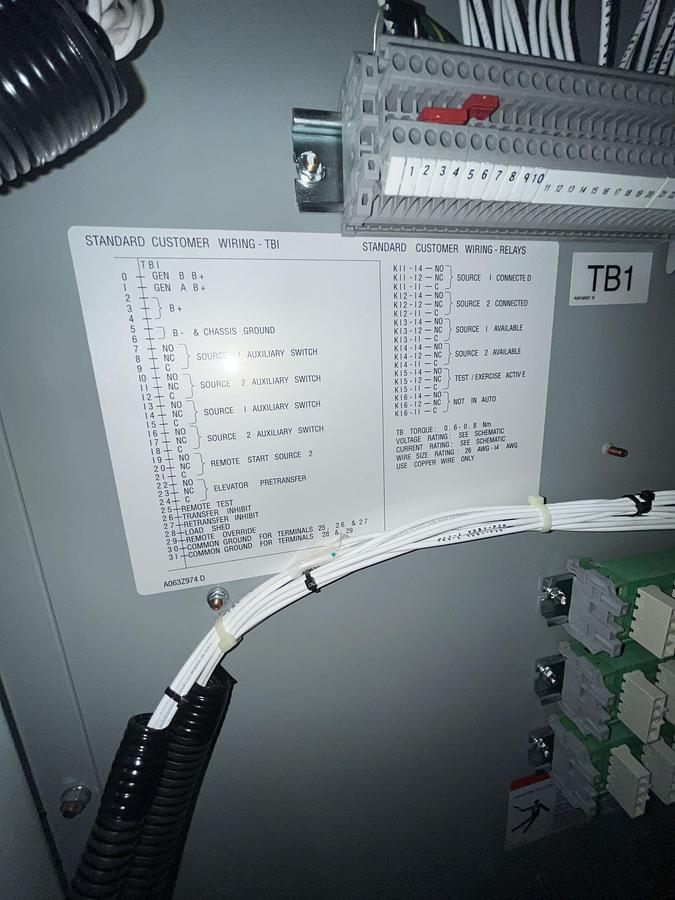

- M076-7: Standard Customer I/O
- B053-7: Wall Mount Enclosure

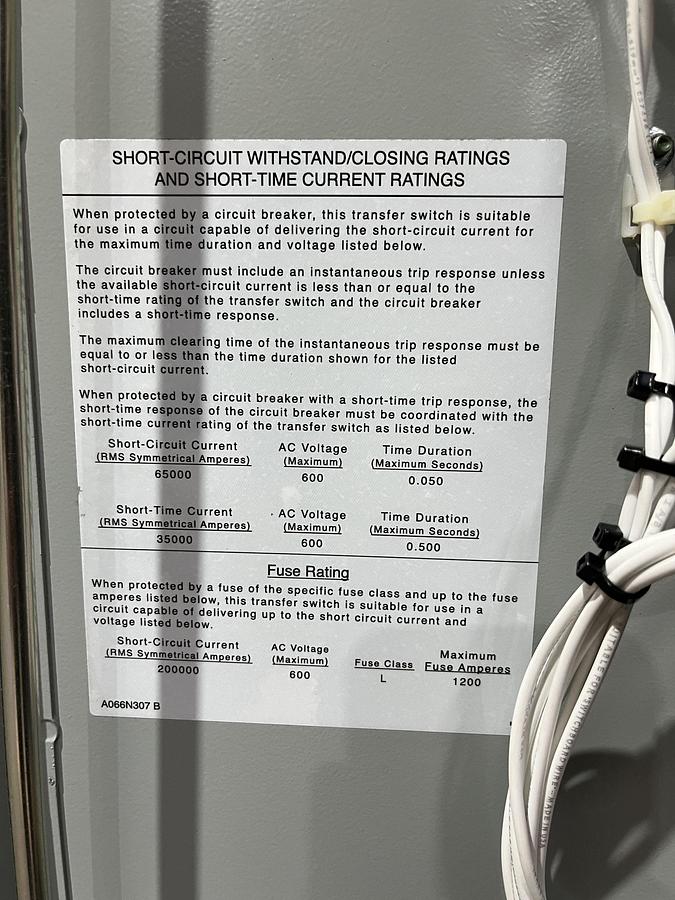

- A087-7: UL 1008 Short Time Current Rating
- N069-7: No Cable Lugs - Bus Stabs

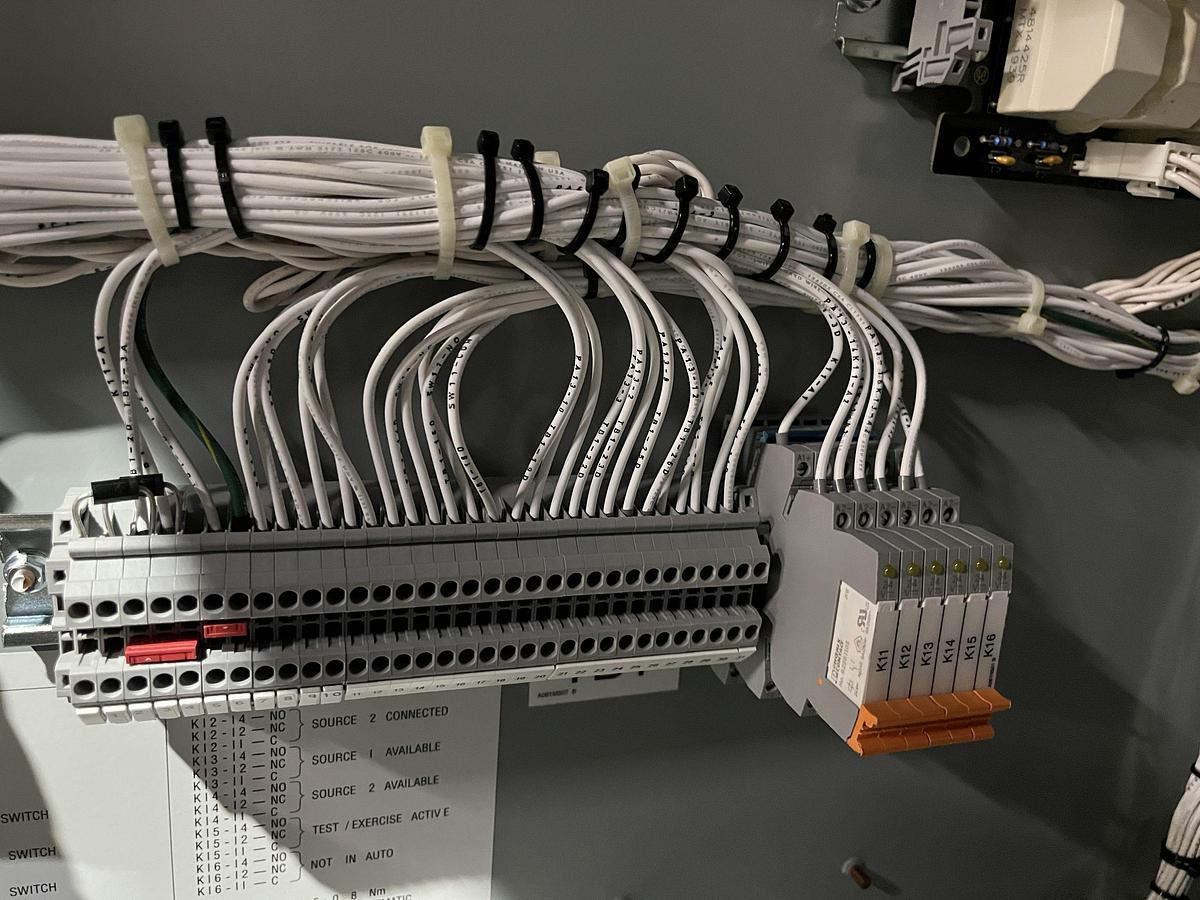

- L101-7: Aux Relay - 24 VDC Coil

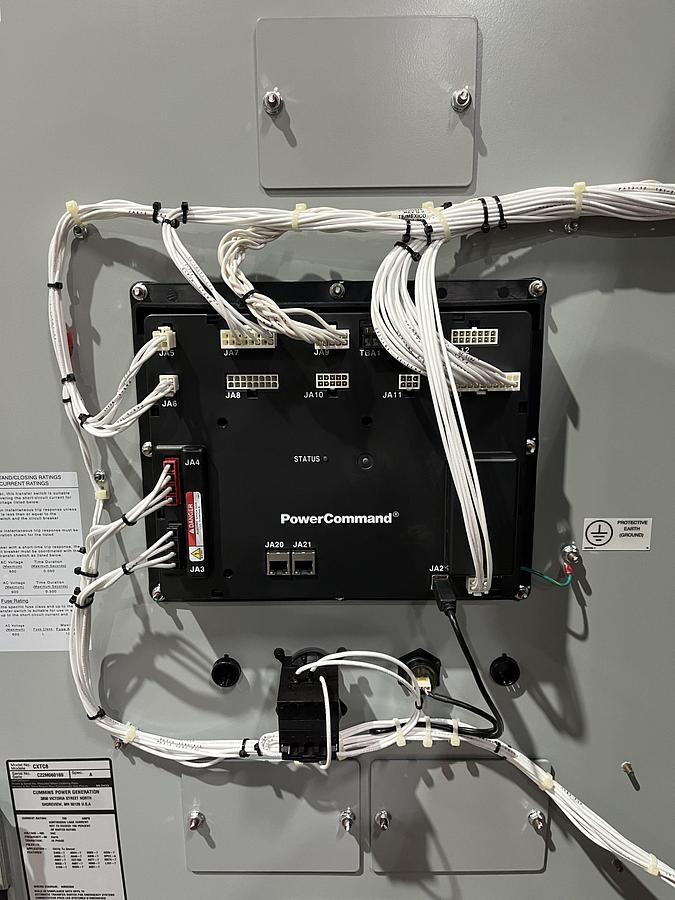

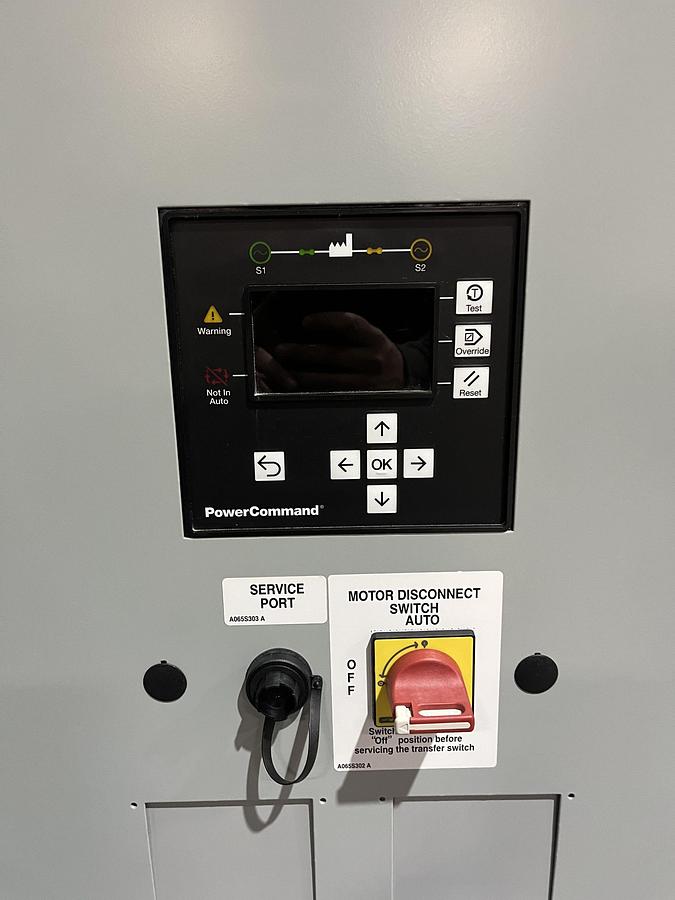

- C109-7: PC80 Control
- R026-7: Voltage - 480
- A091-7: System - 3 Phase, 4-W
Specifications
| Manufacturer | Cummins |
| Model | CXTC8 Spec. A |
| Year | 2022 |
| Condition | New |
| Serial Number | C22M060169 |
| Stock Number | 00291 |
| Feature Code D403-7 | Integrated High Accuracy Power Quality Metering |
| Feature Code A044-7 | Frequency - 60 Hertz |
| Feature Code B002-7 | Cabinet - Type 3R |
| Feature Code A029-7 | Poles - 4 |
| Feature Code A046-7 | Listing - UL 1008/CSA Certification |
| Feature Code A035-7 | Application - Utility to Genset |
| Feature Code A077-7 | Transfer Mode - In-phase Transition |
| Feature Code M076-7 | Standard Customer I/O |
| Feature Code B053-7 | Wall Mount Enclosure |
| Feature Code A087-7 | UL 1008 Short Time Current Rating |
| Feature Code N069-7 | No Cable Lugs - Bus Stabs |
| Feature Code L101-7 | Aux Relay - 24 VDC Coil |
| Feature Code C109-7 | PC80 Control |
| Feature Code R026-7 | Voltage - 480 |
| Feature Code A091-7 | System - 3 Phase, 4-W |
| * Enclosure | Type 3R Rainproof Enclosure |
| Location | 300 Floor (Mount @ 3-15) |
