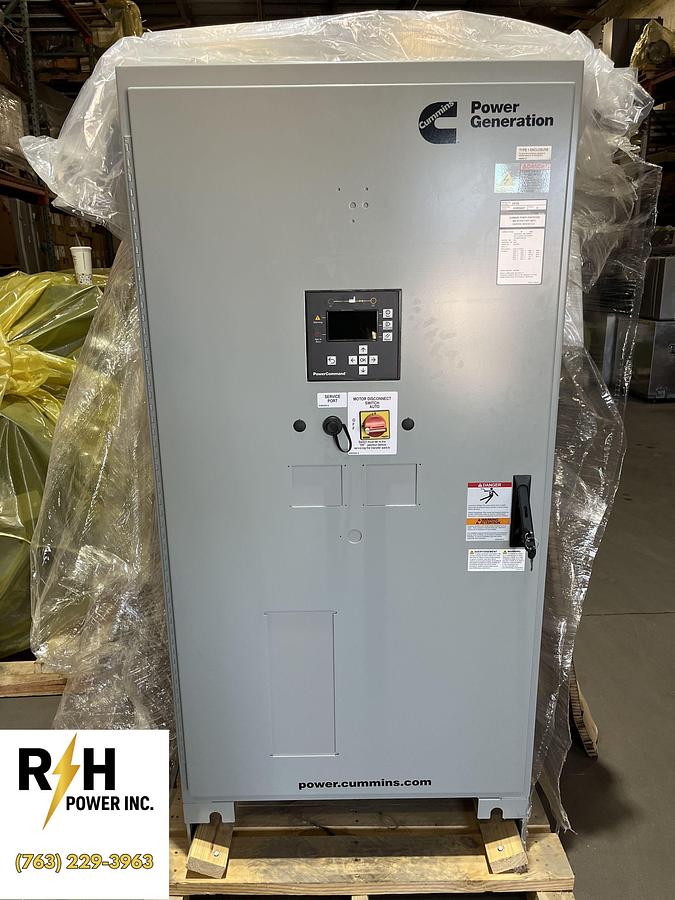

New 150A 208VAC Cummins CXTC8 Spec. A Automatic Transfer Switch - S/N: A23M204627
New 150A 208VAC Cummins CXTC8 Spec. A Automatic Transfer Switch - S/N: A23M204627
Location:Fridley, MN
or
Call 763-229-3963
Description
- New
- Cummins

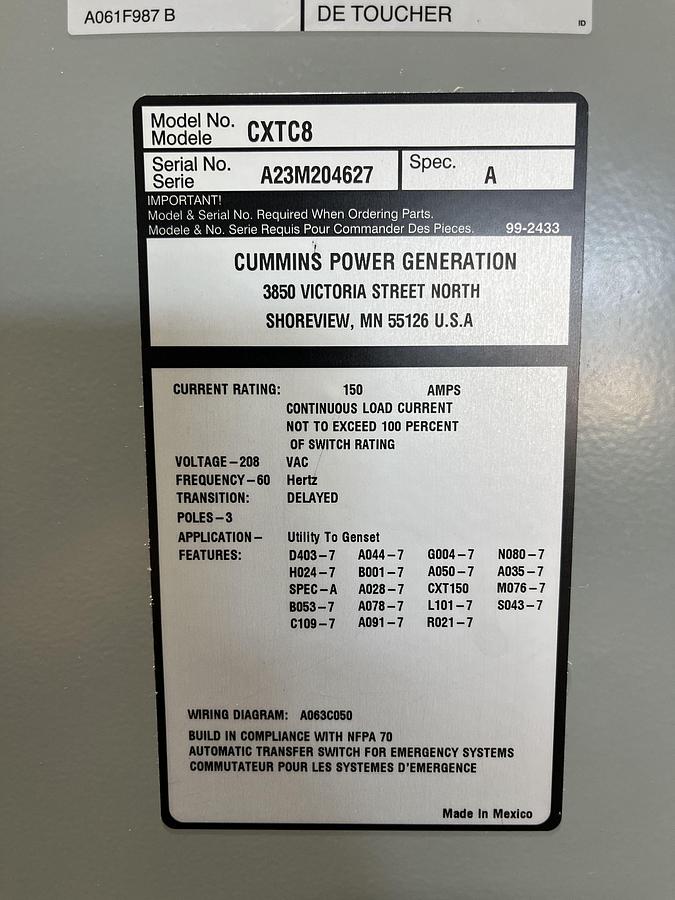

- CXTC8 Spec. A Automatic Transfer Switch
- S/N: A23M204627
- 150 Amp
- 208 VAC
- 60 Hz
- Transition: Delayed
- 3 Pole
- Application: Utility to Genset
- Type 1 Enclosure

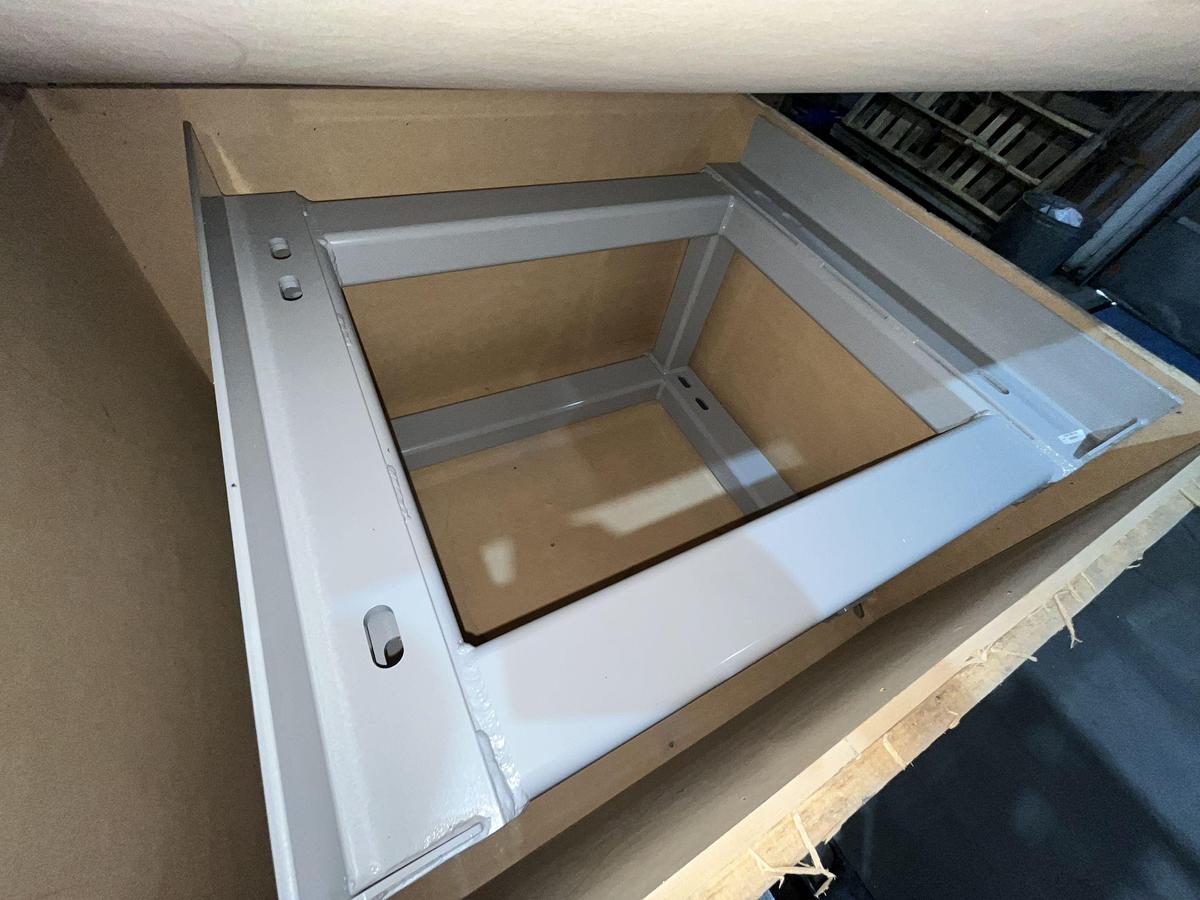

- Includes Frame Support Mount MD163921A066A284
Feature Codes:
- D403-7: Integrated High Accuracy Power Quality Metering
- A044-7: Frequency - 60 Hertz
- G004-7: Transfer Switch Warranty - Cummins 2 Year Comprehensive [Expired]
- N080-7: Cable Lugs - Mechanical, 2-600 MCM/Pole

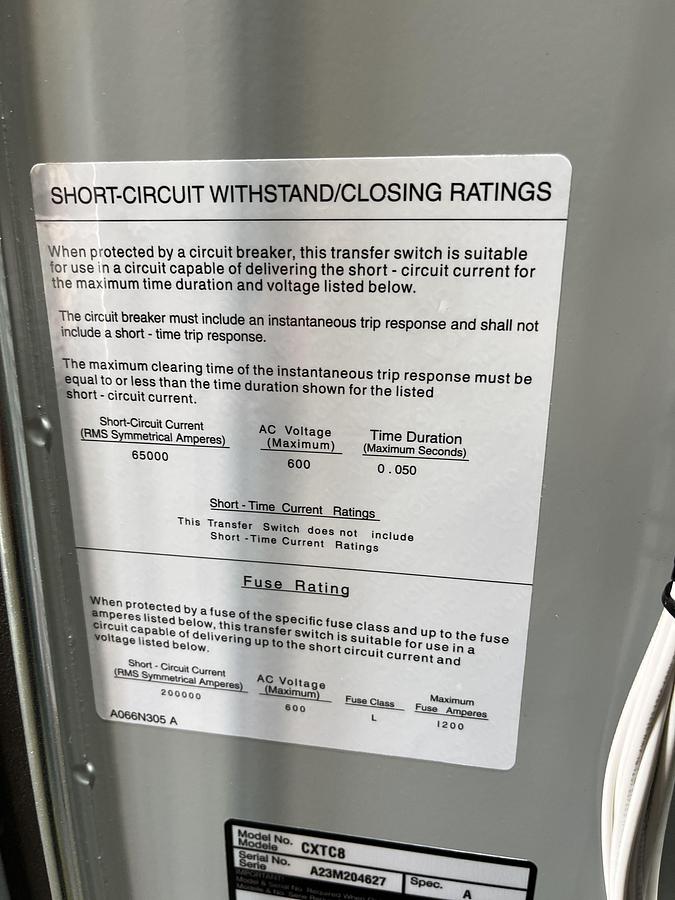

- H024-7: UL 1008 3 Cycle Withstand Rating
- B001-7: Cabinet - Type 1
- A050-7: Packing - Wooden Crate [N/A]
- A035-7: Application - Utility to Genset
- SPEC-A: Product Revision A

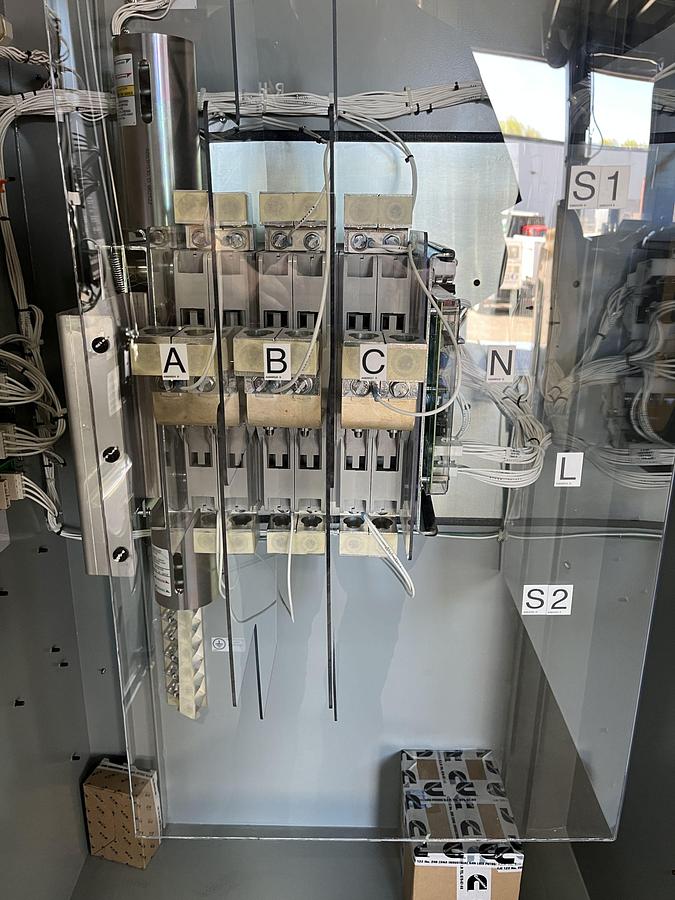

- A028-7: Poles - 3
- CXT150: Model Information

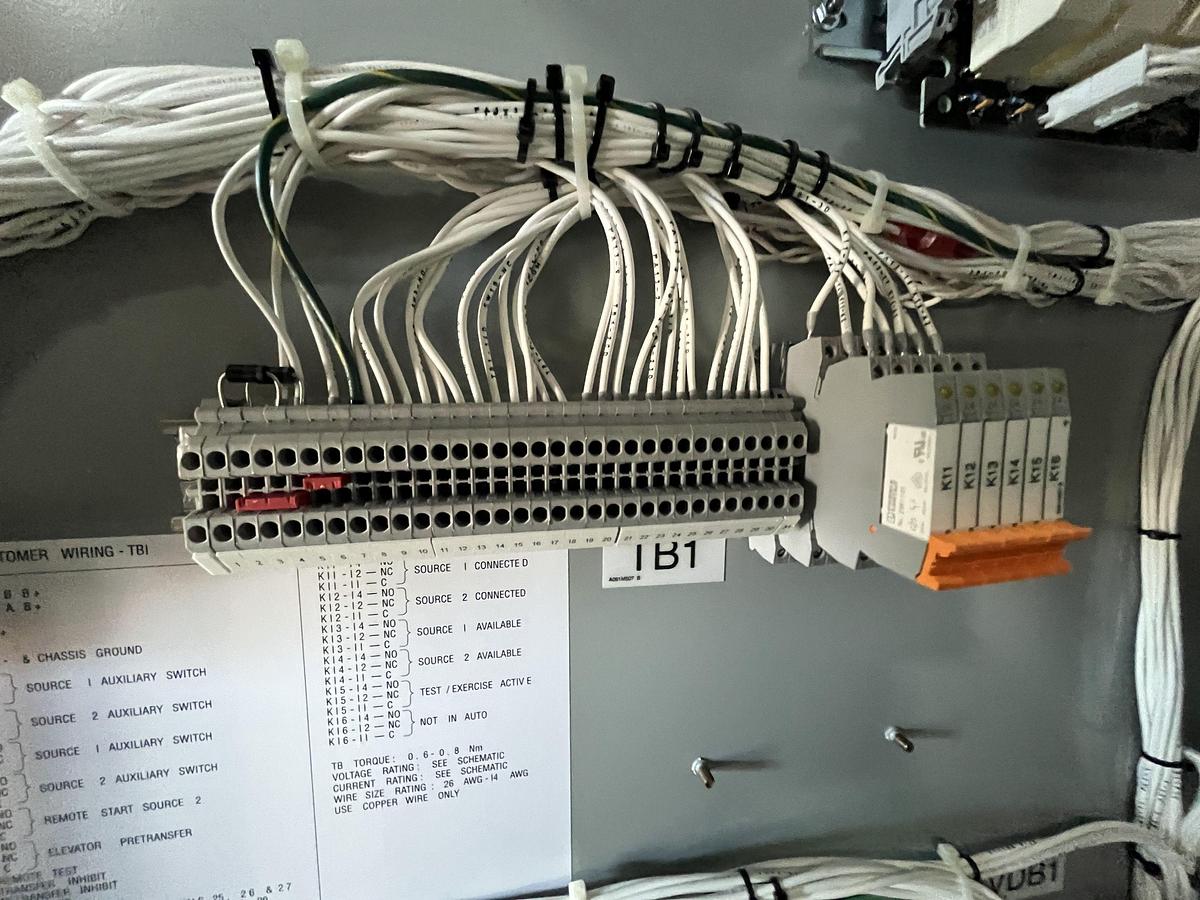

- M076-7: Standard Customer I/O
- B053-7: Wall Mount Enclosure
- A078-7: Transfer Mode - Delayed Transition
- L101-7: Aux Relay - 24 VDC Coil
- S043-7: Listing - UL

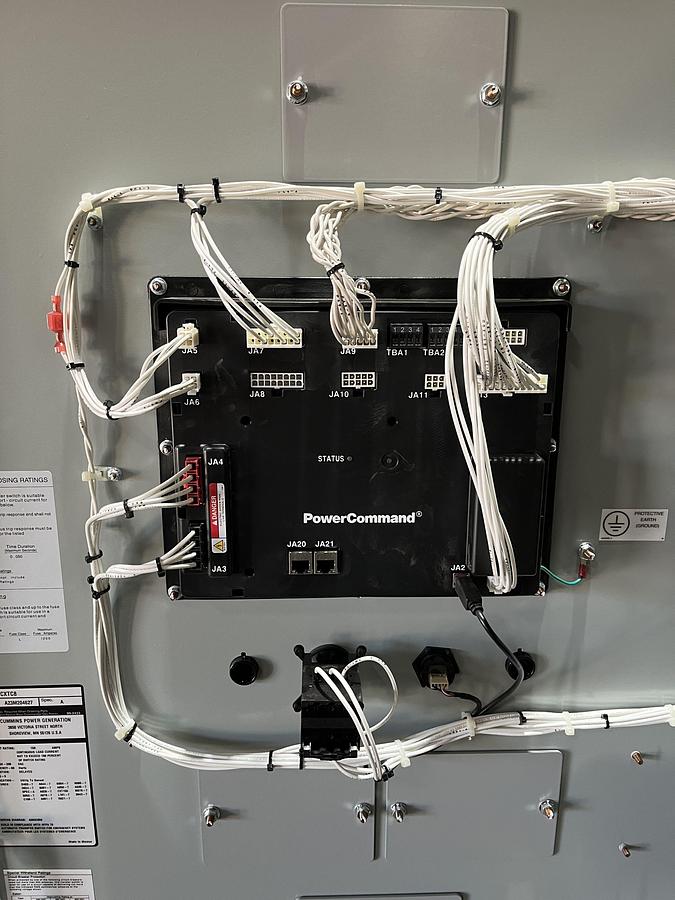

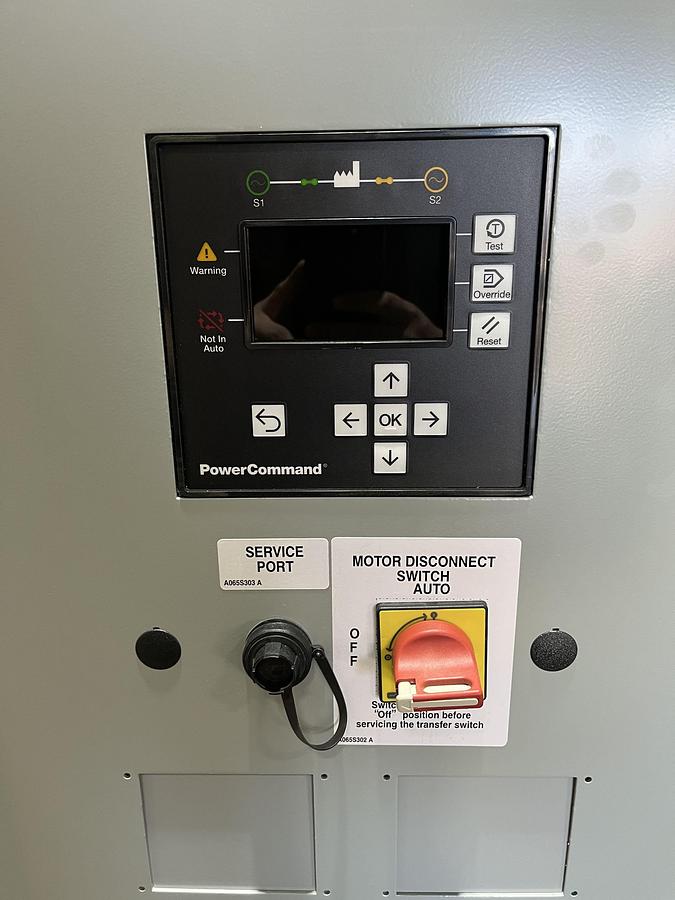

- C109-7: PC80 Control
- A091-7: System - 3 Phase, 4-W
- R021-7: Voltage - 208
Specifications
| Manufacturer | Cummins |
| Model | CXTC8 Spec. A |
| Year | 2023 |
| Condition | New |
| Serial Number | A23M204627 |
| Stock Number | 00289 |
| Feature Code D403-7 | Integrated High Accuracy Power Quality Metering |
| Feature Code A044-7 | Frequency - 60 Hertz |
| Feature Code N080-7 | Cable Lugs - Mechanical, 2-600 MCM/Pole |
| Feature Code H024-7 | UL 1008 3 Cycle Withstand Rating |
| Feature Code B001-7 | Cabinet - Type 1 |
| Feature Code A035-7 | Application - Utility to Genset |
| Feature Code A028-7 | Poles - 3 |
| Feature Code M076-7 | Standard Customer I/O |
| Feature Code B053-7 | Wall Mount Enclosure |
| Feature Code A078-7 | Transfer Mode - Delayed Transition |
| Feature Code L101-7 | Aux Relay - 24 VDC Coil |
| Feature Code S043-7 | Listing - UL |
| Feature Code C109-7 | PC80 Control |
| Feature Code A091-7 | System - 3 Phase, 4-W |
| Feature Code R021-7 | Voltage - 208 |
