150 Amp 208VAC Cummins CXTC8 Spec. A Automatic Transfer Switch - S/N: D23M220097
150 Amp 208VAC Cummins CXTC8 Spec. A Automatic Transfer Switch - S/N: D23M220097
Location:Fridley, MN
or
Call 763-229-3963
Description
- New
- Cummins

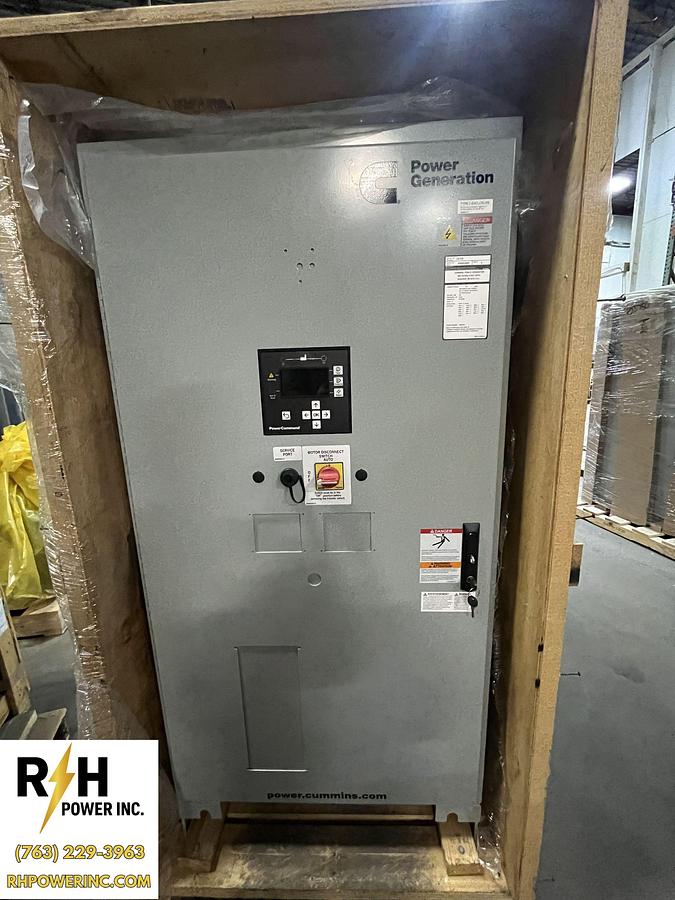

- CXTC8 Spec. A Automatic Transfer Switch
- S/N: D23M220097
- 150 Amps
- 208 VAC
- 60 Hz
- Transition: In Phase
- 3 Pole
- Application: Utility to Genset
- Type 1 Enclosure

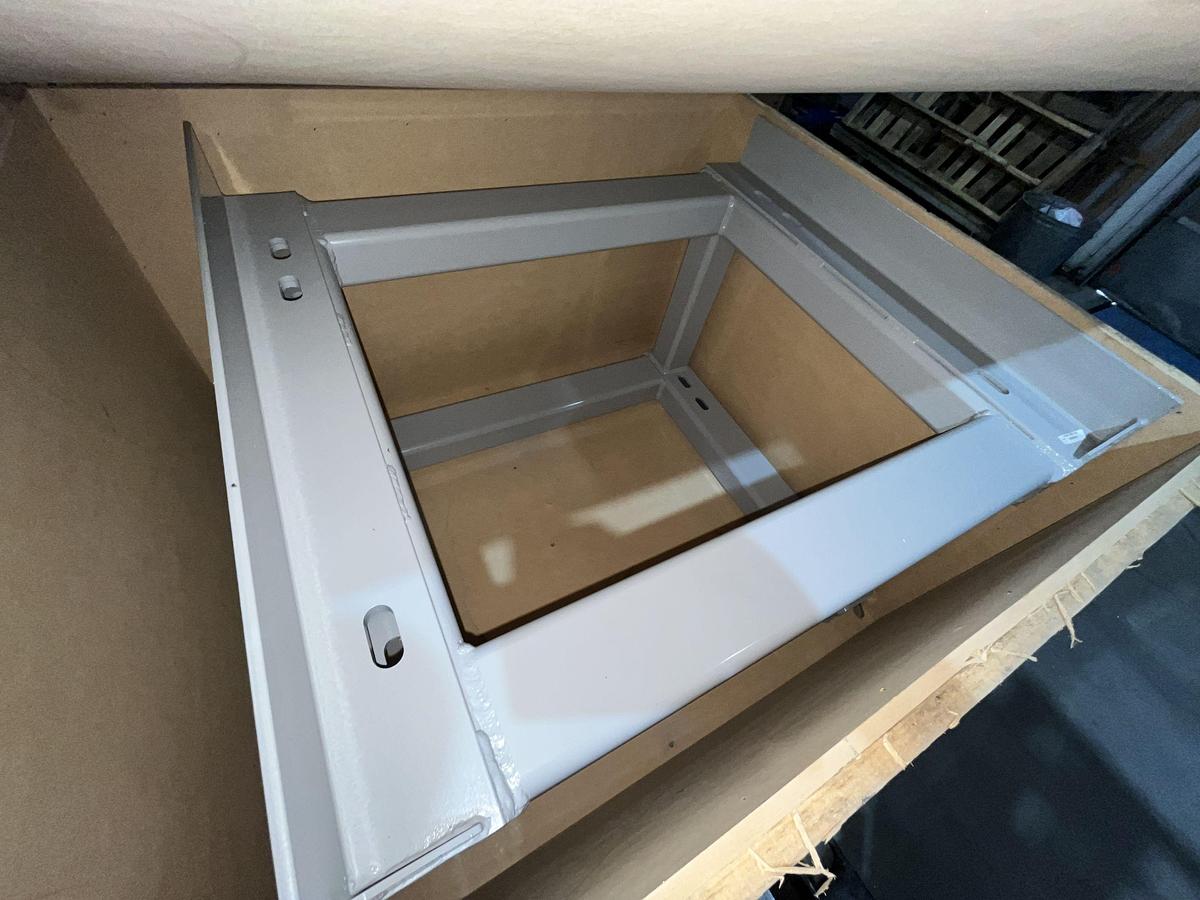

- Includes Frame Support Mount MD163921A066A284
Feature Codes:
- A044-7: Frequency - 60 Hertz
- D403-7: Integrated High Accuracy Power Quality Metering
- N080-7: Cable Lugs - Mechanical, 2-600MCM/Pole
- B001-7: Cabinet - Type 1
- H024-7: UL 1008 3 Cycle Withstand Rating
- A028-7: Poles - 3
- M079-7: Integral Control Power Supply
- SPEC-A: Product Revision A
- A035-7: Application - Utility to Genset
- G007-7: Transfer Switch Wty - Cummins 5 Year Comprehensive [Started 2023]
- A077-7: Transfer Mode - In-Phase Transition
- CXT150- Model Name
- B053-7: Wall Mount Enclosure
- A051-7: Packing - Export Box
- L101-7: Aux Relay - 24 VDC Coil
- S043-7: Listing - UL
- C109-7: PC80 Control
- A091-7: System - 3 Phase, 4-W
- M077-7: Premium Customer I/O
- R021-7: Voltage - 208
- A080-7: Certification - Seismic ATS
Specifications
| Manufacturer | Cummins |
| Model | CXTC8 Spec. A |
| Year | 2023 |
| Condition | New |
| Serial Number | D23M220097 |
| Stock Number | 00285 |
| Application: | Utility to Genset |
| Model: | CXTC8 Spec. A |
| Feature Code - A080-7: | Certification - Seismic ATS |
| Feature Code - R021-7: | Voltage - 208 |
| Feature Code - M077-7: | Premium Customer I/O |
| Feature Code - A091-7: | System - 3 Phase, 4-W |
| Feature Code - C109-7: | PC80 Control |
| Feature Code - S043-7: | Listing - UL |
| Feature Code - L101-7: | Aux Relay - 24 VDC Coil |
| Feature Code - A051-7: | Packing - Export Box |
| Feature Code - B053-7: | Wall Mount Enclosure |
| Feature Code - A077-7: | Transfer Mode - In-Phase Transition |
| Feature Code - G007-7: | Transfer Switch Wty - Cummins 5 Year Comprehensive [Started 2023] |
| Feature Code - A035-7: | Application - Utility to Genset |
| Feature Code - M079-7: | Integral Control Power Supply |
| Feature Code - A028-7: | Poles - 3 |
| Feature Code - H024-7: | UL 1008 3 Cycle Withstand Rating |
| Feature Code - B001-7: | Cabinet - Type 1 |
| Feature Code - N080-7: | Cable Lugs - Mechanical, 2-600MCM/Pole |
| Feature Code - D403-7: | Integrated High Accuracy Power Quality Metering |
| Feature Code - A044-7: | Frequency - 60 Hertz |
| Current Rating | 150 Amps |
