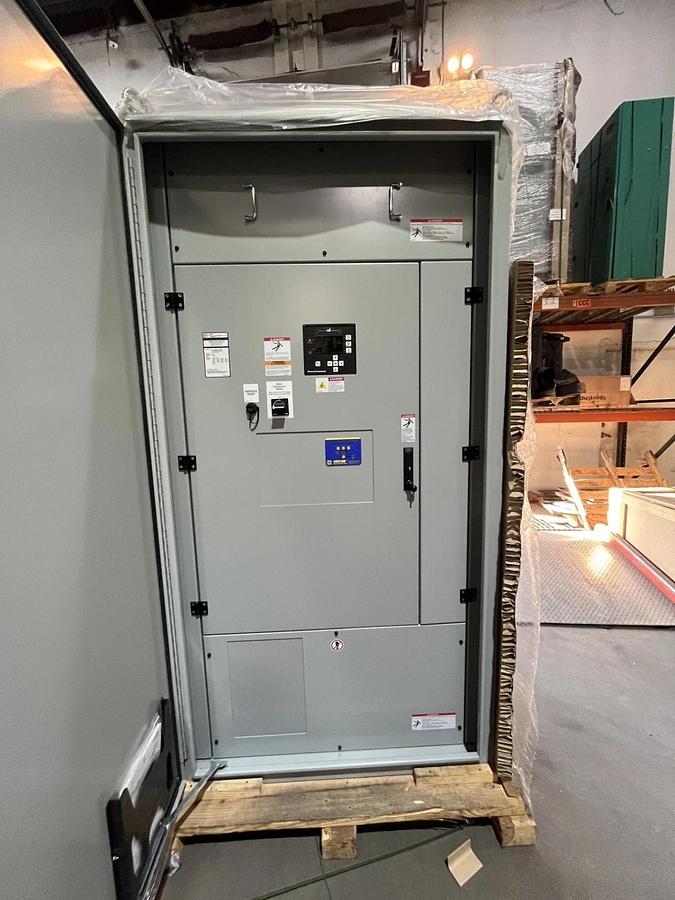

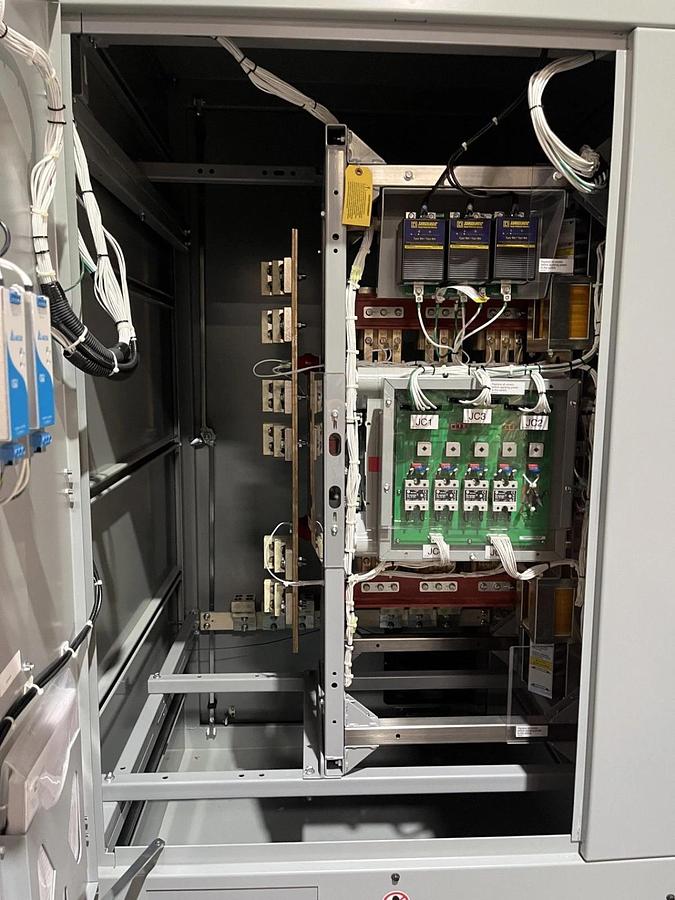

New 1600 Amp 480VAC Cummins CXRF8 Automatic Transfer Switch - S/N: D22M057070

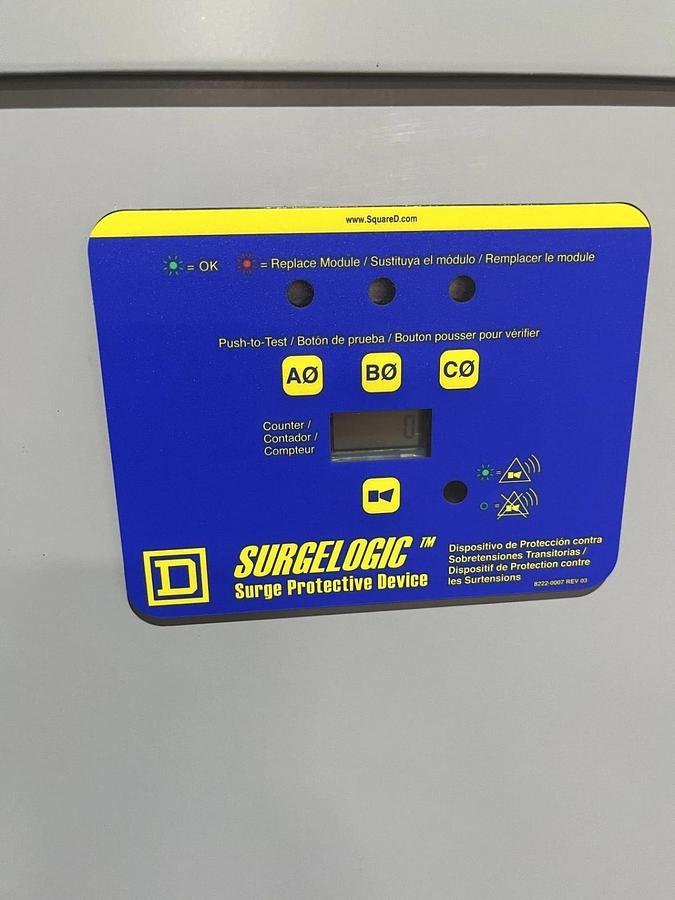

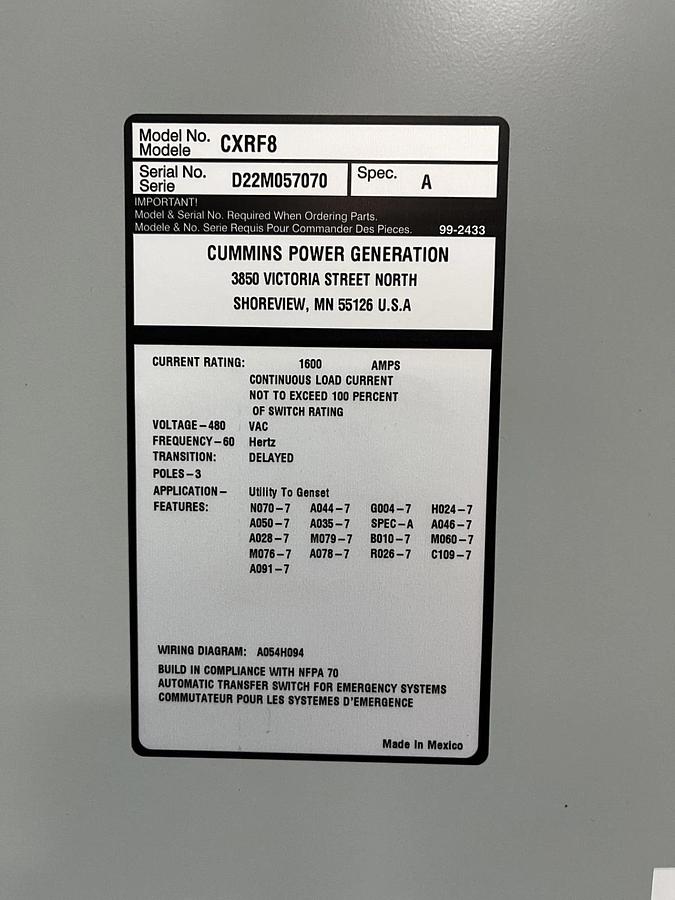

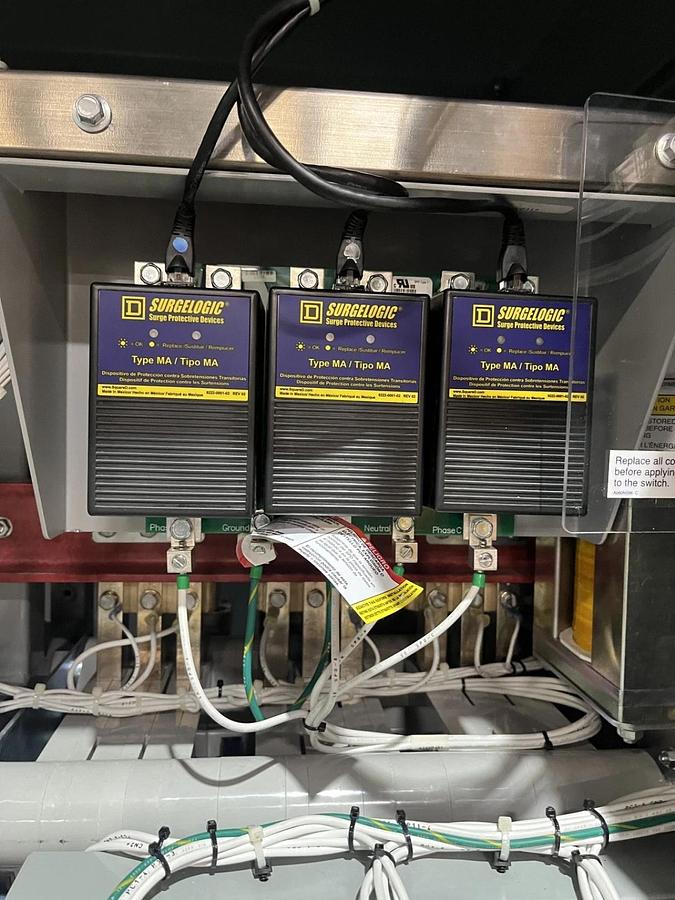

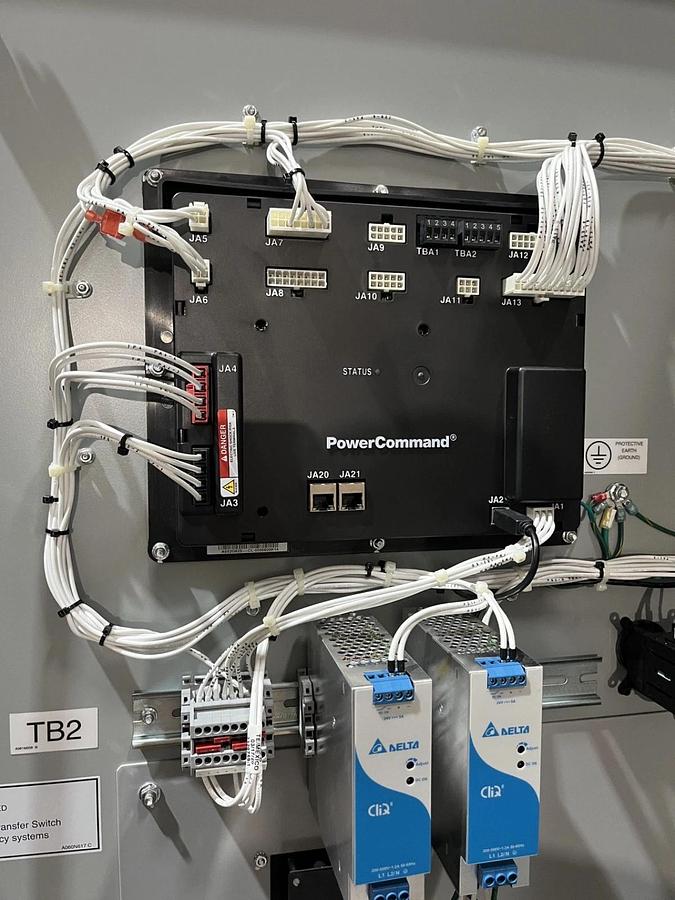

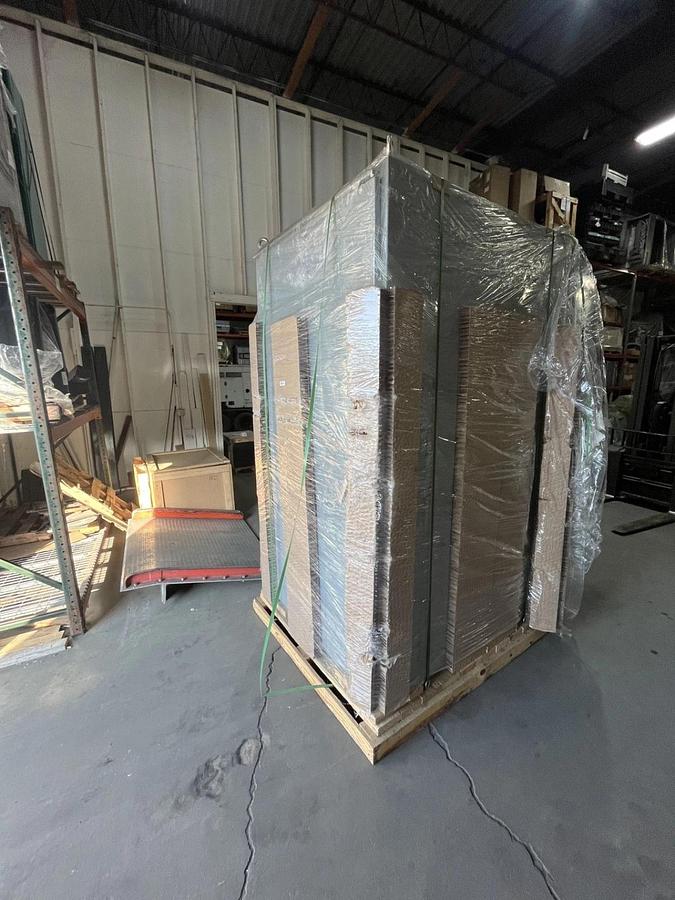

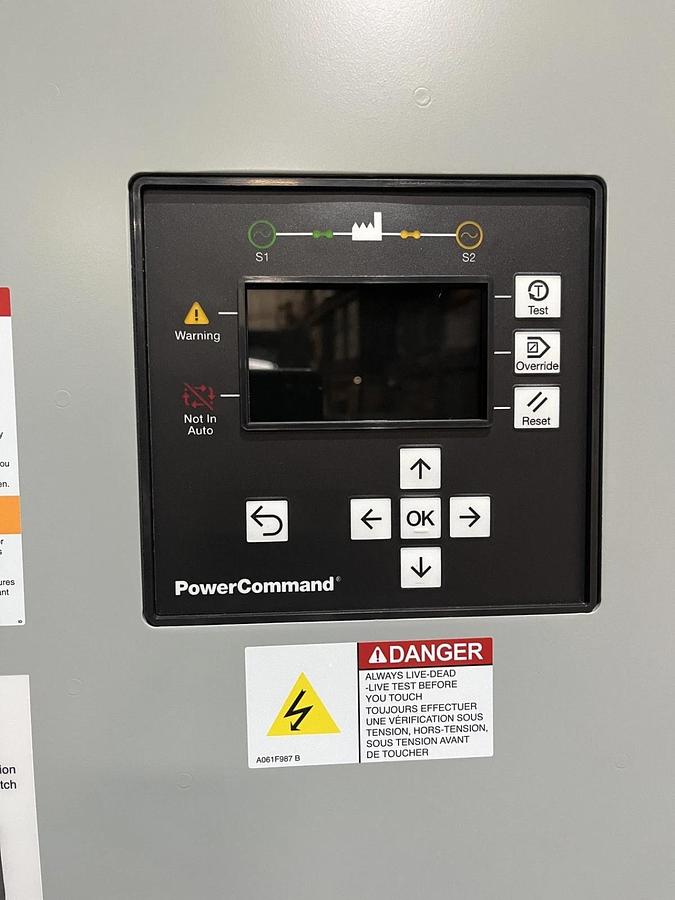

New Cummmins CXRF8 Spec. A Automatic Transfer Switch SN: D22M057070 1600 Amp 480 VAC 60 Hz 3 Poles Transition: Delayed Utility to Genset Wiring Diagram: A054H094 Shipping Dimensions: 2,204 lbs 66 x 54 x 100" Feature Codes: N070-7: Cable Lugs - Mechanical, 1/0-750 MCM A050-7: Packing - Wooden Crate (N/A) A028-7: Poles - 3 M076-7: Standard Customer I/O A091-7: System - 3 Phase, 4-W A044-7: Frequency - 60 Hz A035-7: Appl - Utility to Genset M079-7: Integral Control Power Supply A078-7: Transfer Mode - Delayed Transition G004-7: Transfer Switch Wty - 2 Year Comprehensive SPEC-A: Product Revison A B010-7: Cabinet - Type 12 R026-7: Voltage - 480 H024-7: UL 1008 3 Cycle Withstand Rating A046-7: Listing - UL 1008/CSA Certification M060-7: S1 SPD, 120KA, For WYE Systems C109-7: PC80 Control
