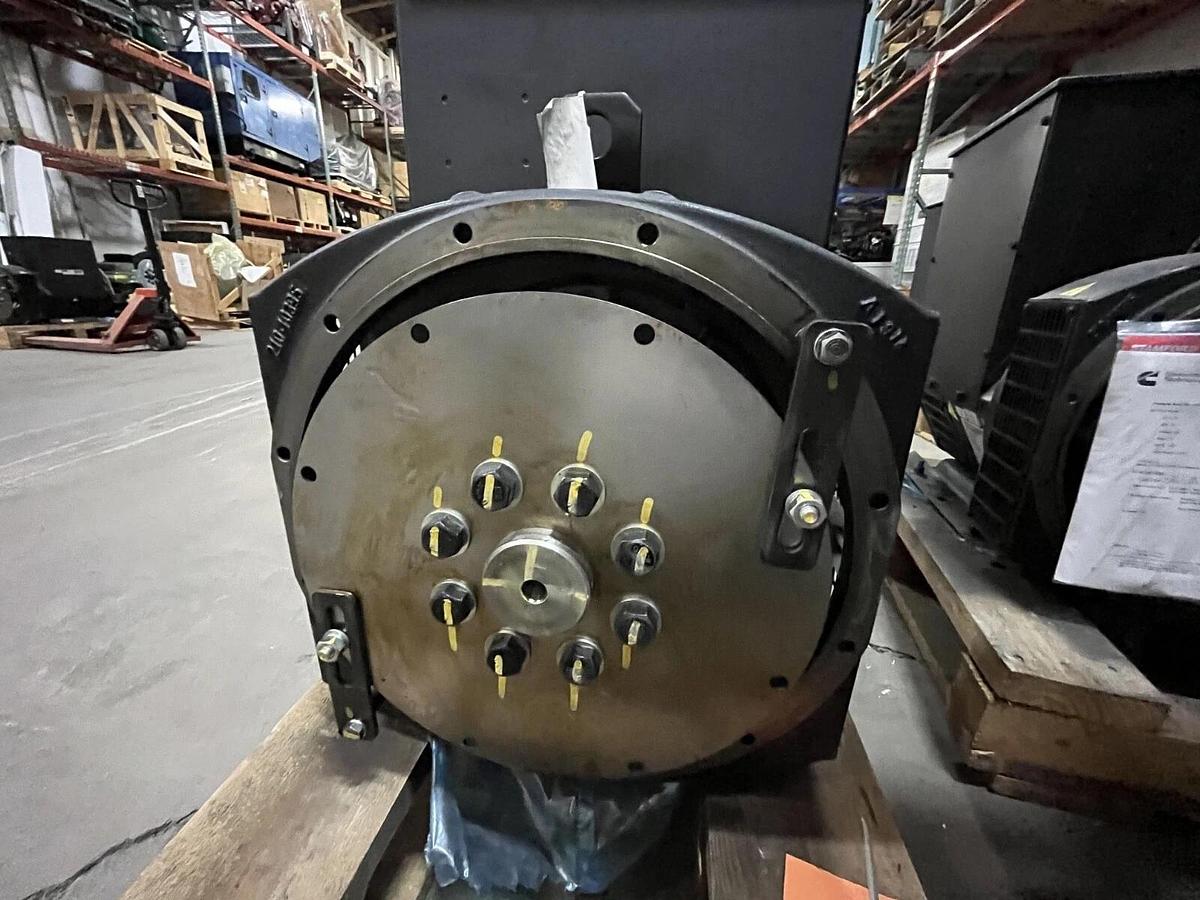

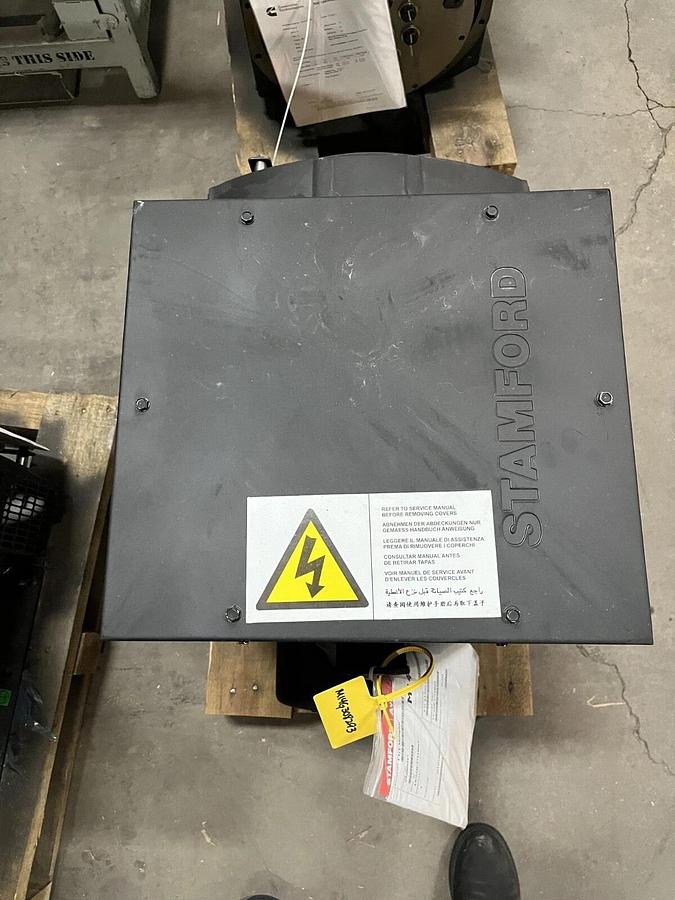

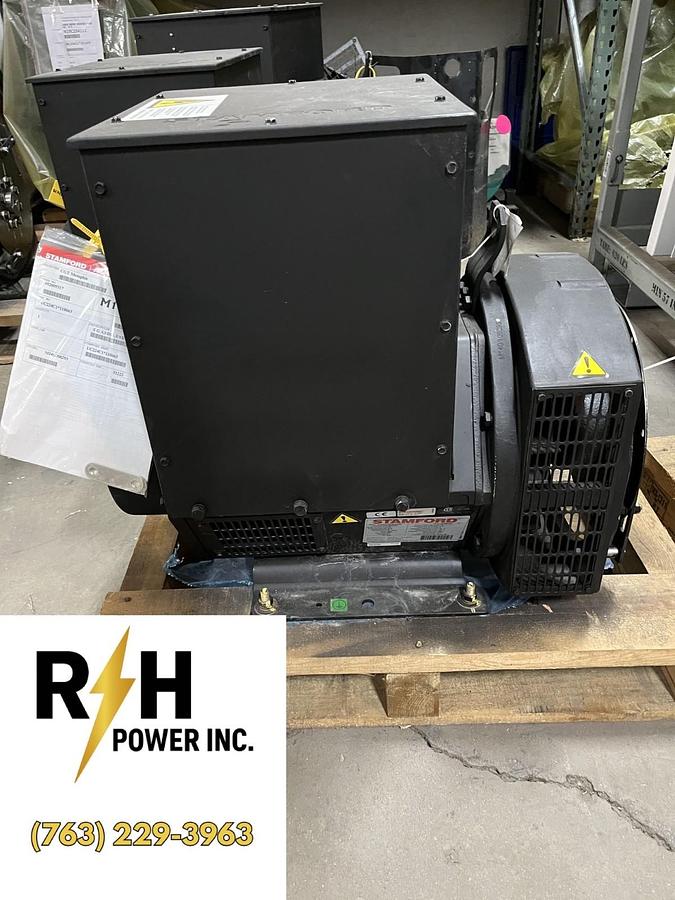

38kW Stamford UCI224C1 Alternator 480V 3Ph - Winding 311
38kW Stamford UCI224C1 Alternator 480V 3Ph - Winding 311
$3,200 (USD)
Location:Fridley, MN
or
Call 763-229-3963
Description
New Old Stock

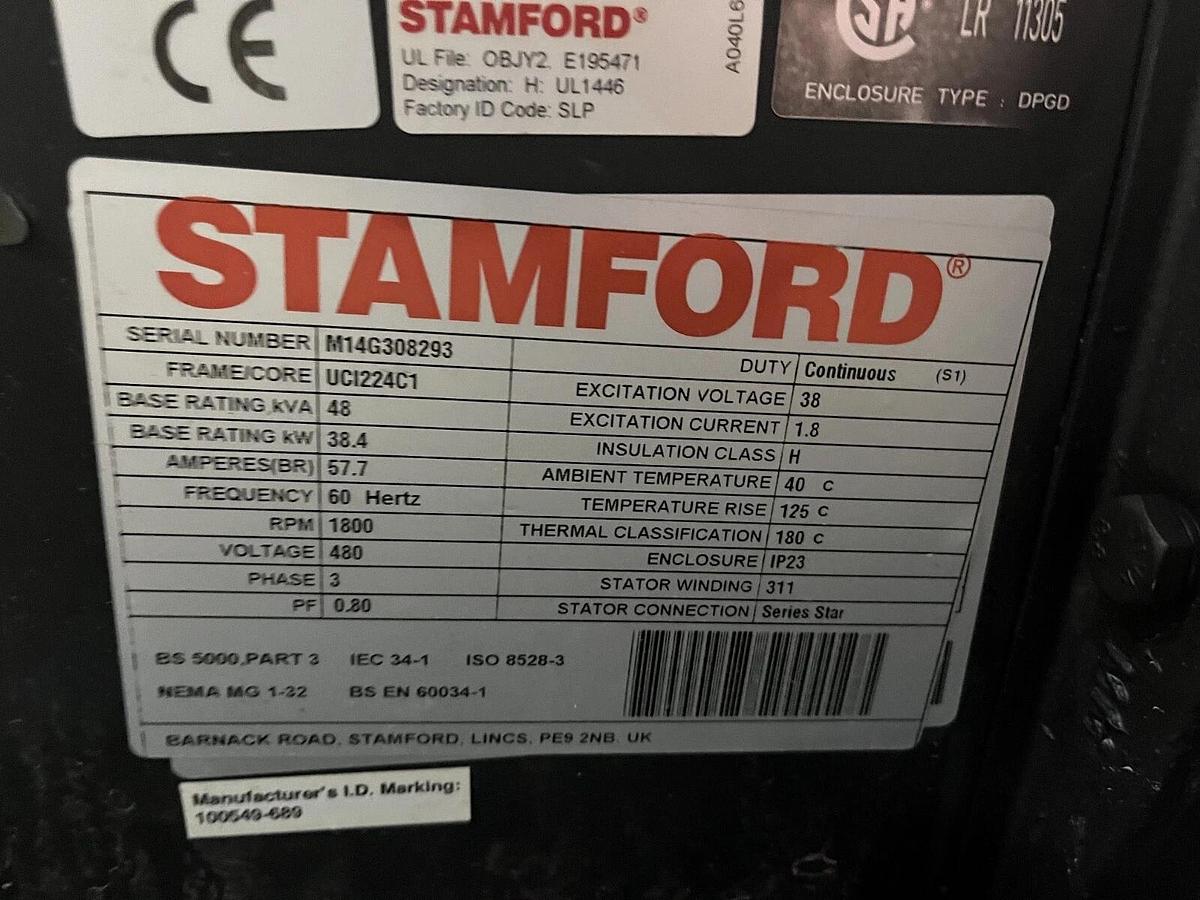

Stamford

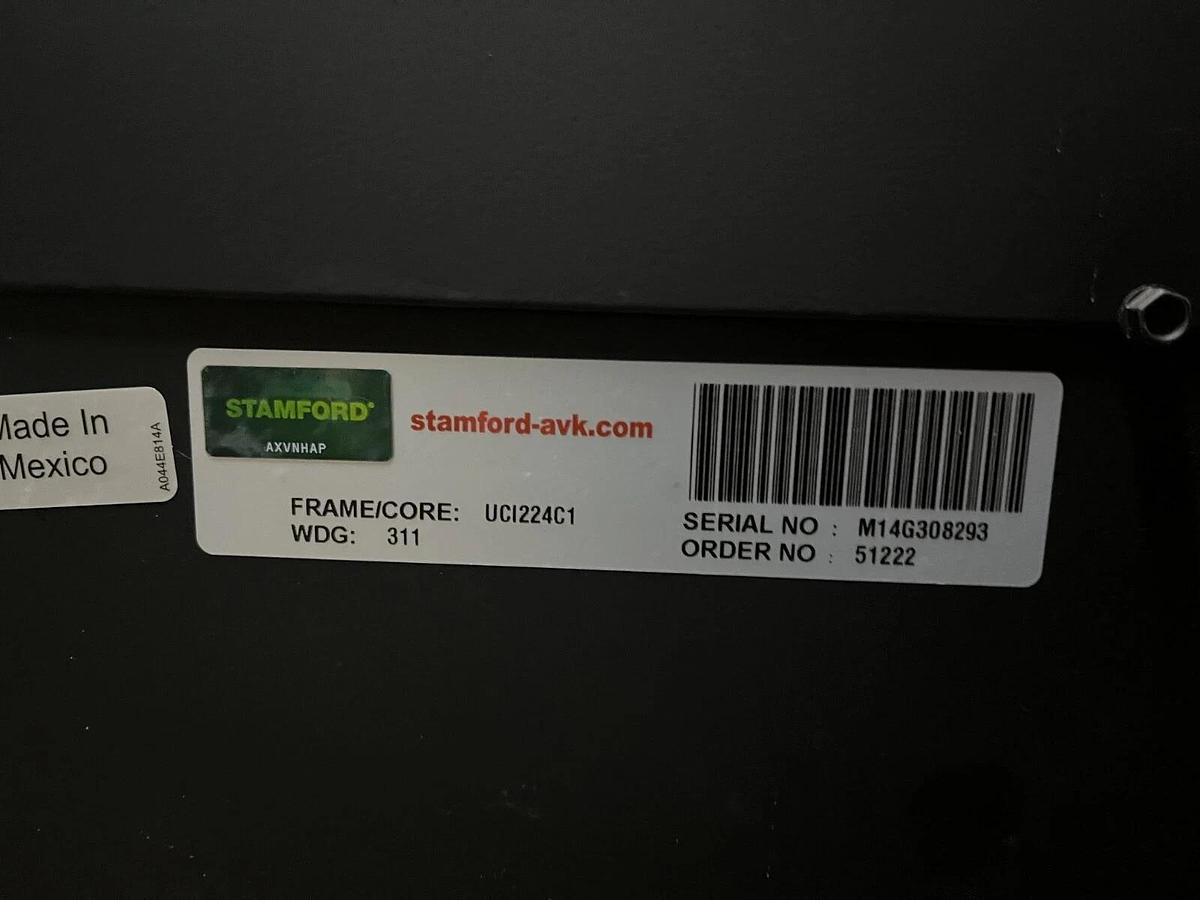

Frame/Core: UCI224C1
Duty: Continuous (S1)
Base Rating kVA: 48
Base Rating kW: 38.4
Amperes(BR): 57.7
60 Hz
1800 RPM
480V
3 Phase
PF: 0.8
Excitation Voltage: 38
Excitation Current: 1.8
Insulation Class: H
Ambient Temperature: 40 C
Temperature Rise: 125 C
Thermal Classification: 180 C
Enclosure: IP23
Stator Connection: Series Star
Winding: 311
SAE 3 Housing
SAE 11 1/2 Flywheel
Specifications
| Manufacturer | Stamford |
| Model | N/A |
| Condition | Used |
| Additional Serial Numbers | M14F232798, M14G297110, M14G319086, M14G308190, M14H329810 |
| Serial Numbers | M14G297109, M14G308293, M14F232792, M14F232799, M14F232729 |
| Equipment Type | Alternator |
| UPC | N/A |
| Country of Origin | United States |
